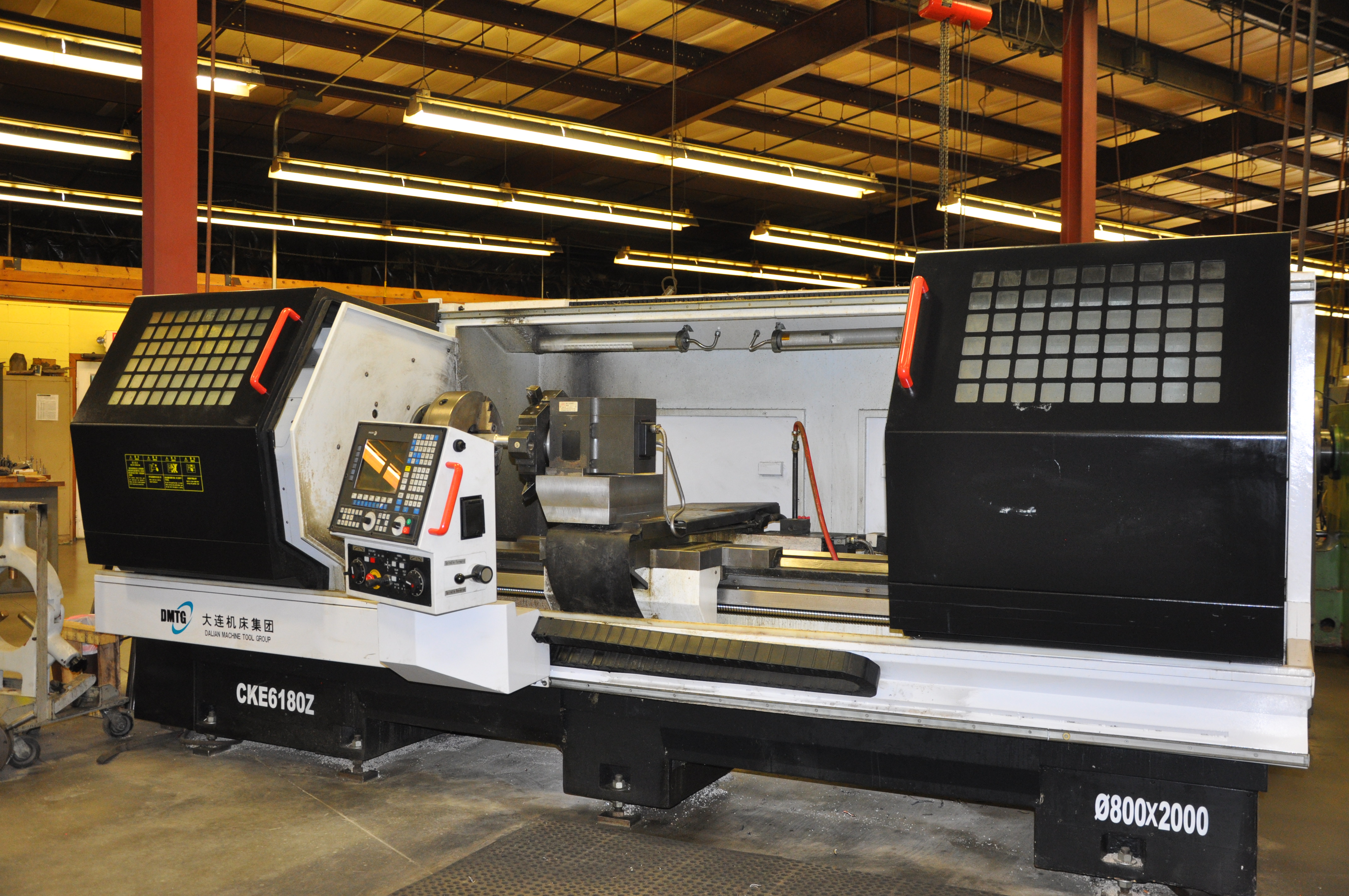

DMTG 3260 2012

machine specification

• SWING OVER BED
• 31.5”

• MAX SWING OVER CROSS SLIDE
• 19.3”

• BED WIDTH
• 21 5/8”

• MAIN SPINDLE NOSE
• C-11

• MAIN SPINDLE BORE
• 3.93

• SPINDLE TAPER
• MT5

• NUMBER OF AUTOMATIC GEAR RANGES (CSS)
• 3

• SPEED RANGE
• 40-1000 rpm (CSS)

• RAPID RATE X/Z
• .60/315

• MAX TOOL SIZE
• 1.5

• TAILSTOCK QUILL TRAVEL
• 6”

• TAILSTOCK TAPER
• 5MT

• DRIVE MOTOR CSS
• 15 Hp

• SPINDLE TAPER (CAT/BT)
• MT5

• CHUCK SIZE (INCHES)
• 16"

• SWING OVER CROSS SLIDE
• 19.3"

• BED WIDTH
• 21 5/8"

• MAIN SPINDLE NOSE
• C-11

• MAIN SPINDLE BORE
• 3.93

• NUMBER OF AUTOMATIC GEAR RANGES (CSS)
• 3

• X & Z AXES RAPID RATE (IN/MIN)
• .60/315

• MAX. TOOL SIZE
• 15

• TAILSTOCK QUILL TRAVEL
• 6"

• DRIVE MOTOR CSS
• 15 HP

machine equipped with

• 16" DIA 3 - JAW UNIVERSAL CHUCK WITH MOUNT
• C20102 STEADY REST
• 20-710 TRIPLE BEARING LIVE CENTER
• 6 STATION VERTICAL TORIT TOOL POST
• 34" DIAMETER ALUMINUM FACE PLATE

machine description
