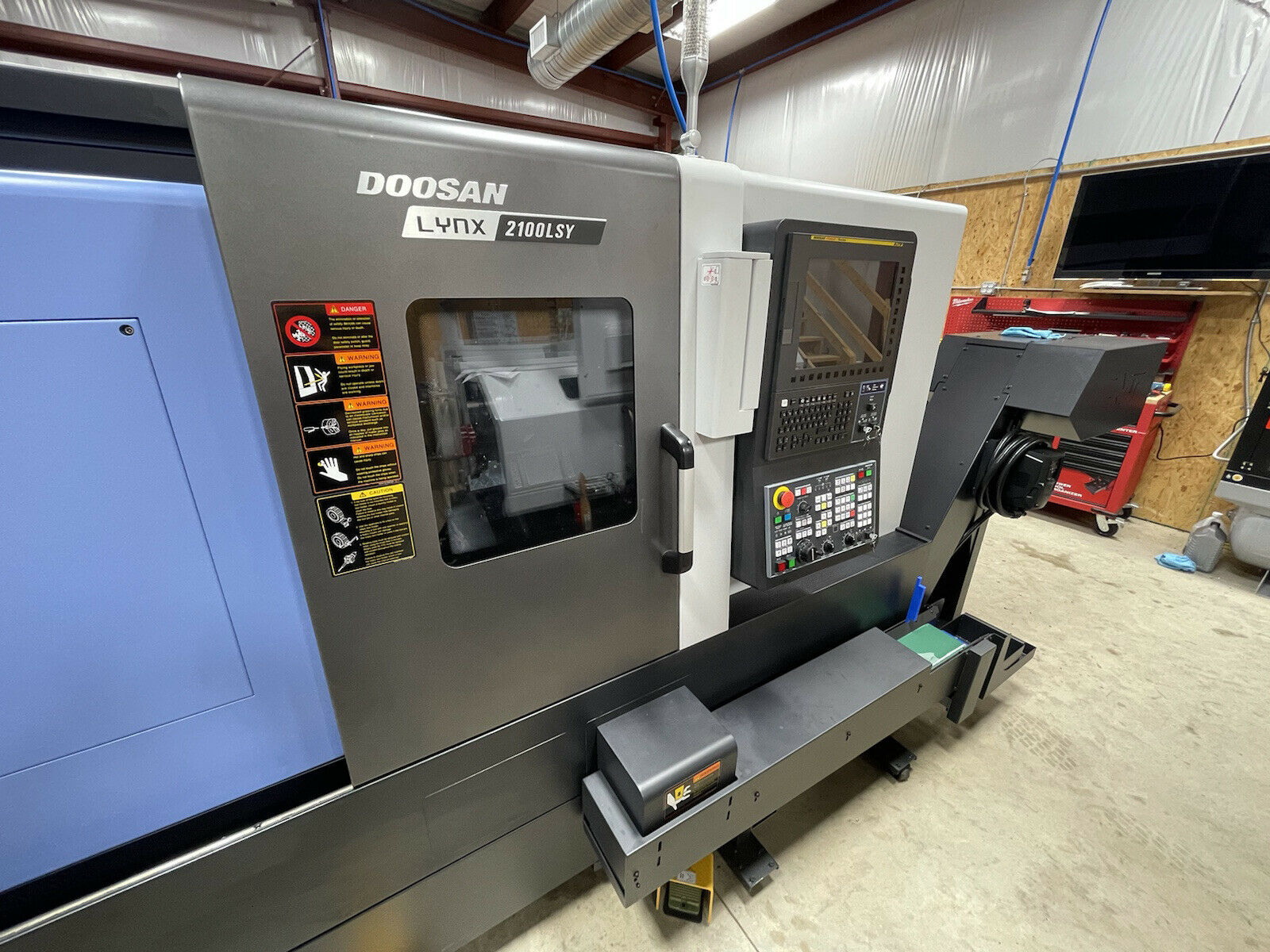

Doosan Lynx 2100LSYB 2020

machine specification

• BORING BAR DIAMETER
• 32 mm (1.3 in)

• TOOL SHANK
• BMT-45

• TURRET STATIONS
• 12 Slot

• TRAVEL DISTANCE X-AXIS
• 205 mm (8.1 in)

• TRAVEL DISTANCE Y-AXIS
• 05±52.5 mm (4.1±2.1 in)

• TRAVEL DISTANCE Z-AXIS
• 560 mm (22 in)

• TRAVEL DISTANCE B-AXIS
• 560 mm (22 in)

• RAPID TRAVERSE (X AXIS)
• 30 m/min (1181 in/min)

• RAPID TRAVERSE (Y AXIS)
• 10 m/min (394 in/min)

• RAPID TRAVERSE (Z AXIS)
• 36 m/min (1417 in/min)

• MAX TURNING DIAMETER
• 300 mm (11.8 in)

• MAX TURNING LENGTH
• 510 mm (20.1 in)

• MAX. HOLE DIAMETER
• 66 mm (2.6 in)

• CHUCK SIZE
• 8 in

• SPINDLE TORQUE
• 169 Nm (124.6 ft-lbs)

• SPINDLE POWER
• 15 kW (20 Hp)

• SPINDLE SPEED
• 4500 rpm

• SUB-SPINDLE CHUCK SIZE
• 5"

• SUB - SPINDLE SPEED
• 6,000 RPM

• SUB - SPINDLE POWER
• 5.5 kW (7.5 Hp)

• SUB-SPINDLE TORQUE
• 47 Nm (34.6 ft-lbs)

• ROTARY TOOL SPEED
• 6000 rpm

• ROTARY TOOL TORQUE
• 24 Nm (17.3 ft-lbs)

machine equipped with

• LNS TURBO CHIP CONVEYOR
• LNS ALPHA SL65 S BAR FEEDER
• QG65 ROYAL COLLECT CHUCK
• 3 JAW CHUCKS
• 1" SPINDLE LINER
• 2" SPINDLE LINER
