machine specification

• SWING OVER BED
• 30.7"

• SWING OVER FRONT DOOR
• 26.8"

• SWING OVER SADDLE
• 24.8"

• RECOM. TURNING DIAMETER
• 10.0"

• BORING BAR DIAMETER
• 2.0"

• MAX TURNING DIAMETER
• 10.0"

• MAX TURNING LENGTH
• 50.4"

• BAR WORKING DIAMETER
• 3.0"

• TRAVEL DISTANCE X-AXIS
• 10.2"

• Y-AXIS
• 4.13"

• RAPID TRAVERSE X-AXIS
• 1181.1 IPM

• RAPID TRAVERSE Y-AXIS
• 393.7 IPM

• RAPID TRAVERSE Z-AXIS
• 1181.1

• RAPID TRAVERSE B-AXIS
• 1181.1 IPM

• SPINDLE NOSE
• ASA A2#8

• SPINDLE BEARING DIAMETER
• (Front) 5.5"

• SPINDLE THRU HOLE DIAMETER
• 3.4"

• SPINDLE INDEXING ANGLE (C-AXIS)
• deg 0.001

• NO. OF TOOL STATIONS
• 12 (24)

• INDEXING TIME
• (1st swivel time) s 0.15

• ROTARY TOOL SPINDLE SPEED
• 5000 RPM

• B-AXIS
• 32.7"/53.1"

• SPINDLE NOSE
• ASA A2-5

• SPINDLE BEARING DIAMETER (FRONT)
• 3.5"

• SPINDLE THROUGH HOLE DIAMETER
• 2.4"

• MIN. SPINDLE INDEXING ANGLE (C-AXIS)
• deg 0.001

• MAIN SPINDLE MOTOR
• 29.5 / 24.8

• SUB SPINDLE MOTOR
• 10.1 / 7.4

• ROTARY TOOL SPINDLE MOTOR
• 7.4

• COOLANT PUMP MOTO
• 0.5

• SPINDLE SPEED
• 3500

• SUB SPINDLE SPEED
• 4500

• X-AXIS
• 53.1"

• B-AXIS
• 53.1"

machine equipped with

• SUB SPINDLE
• LIVE TOOLING
• Y-AXIS MILLING
• FANUC 31I CONTROL

machine description

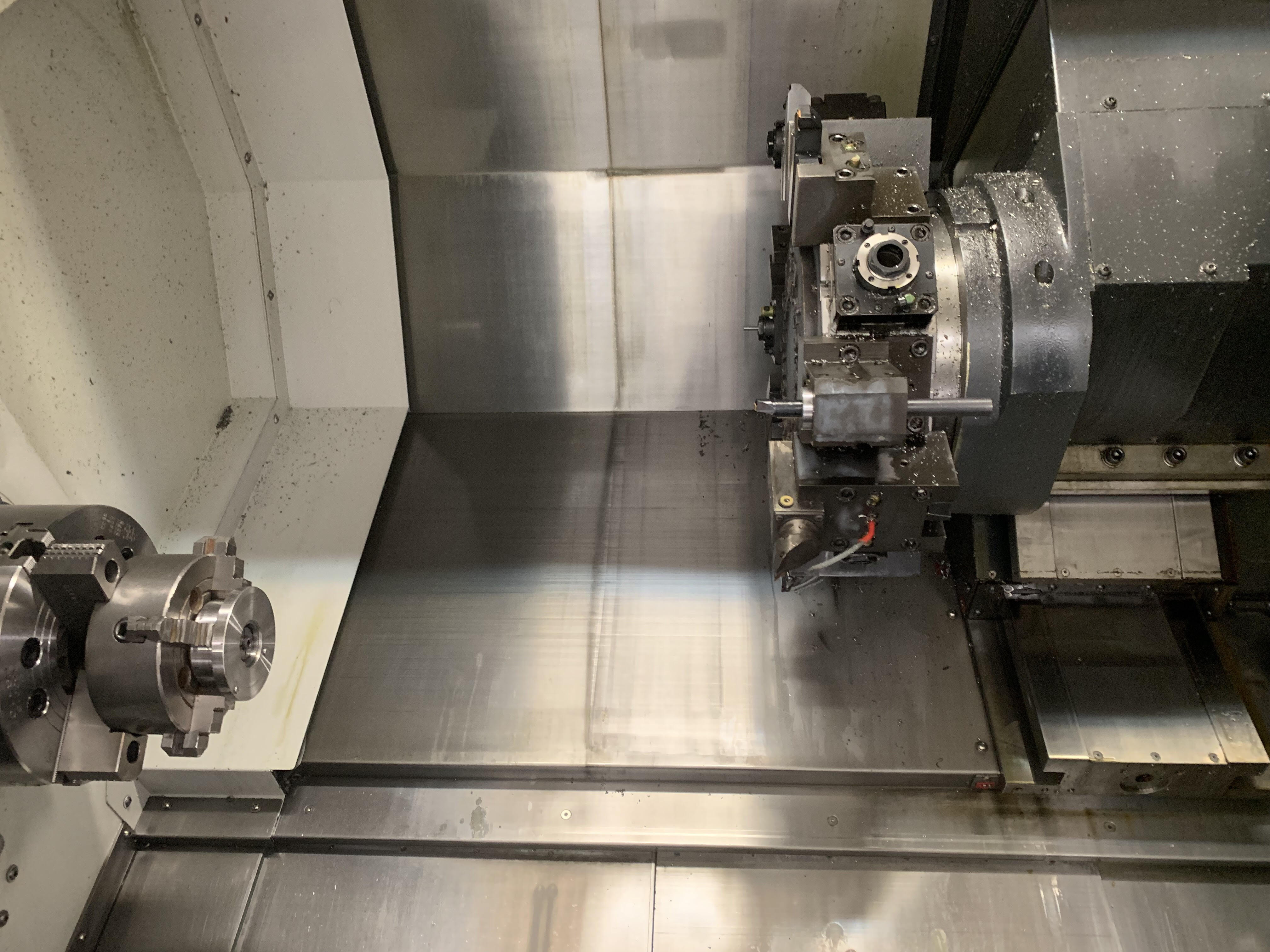

This Doosan Puma 2600LSY CNC Lathe features a 30.7" swing over bed, and 10.2"X x 4.13"Y x 53.1"Z x 53.1"B axis travels. The machine comes equipped with a sub-spindle, Y axis milling, and a tail stock.
