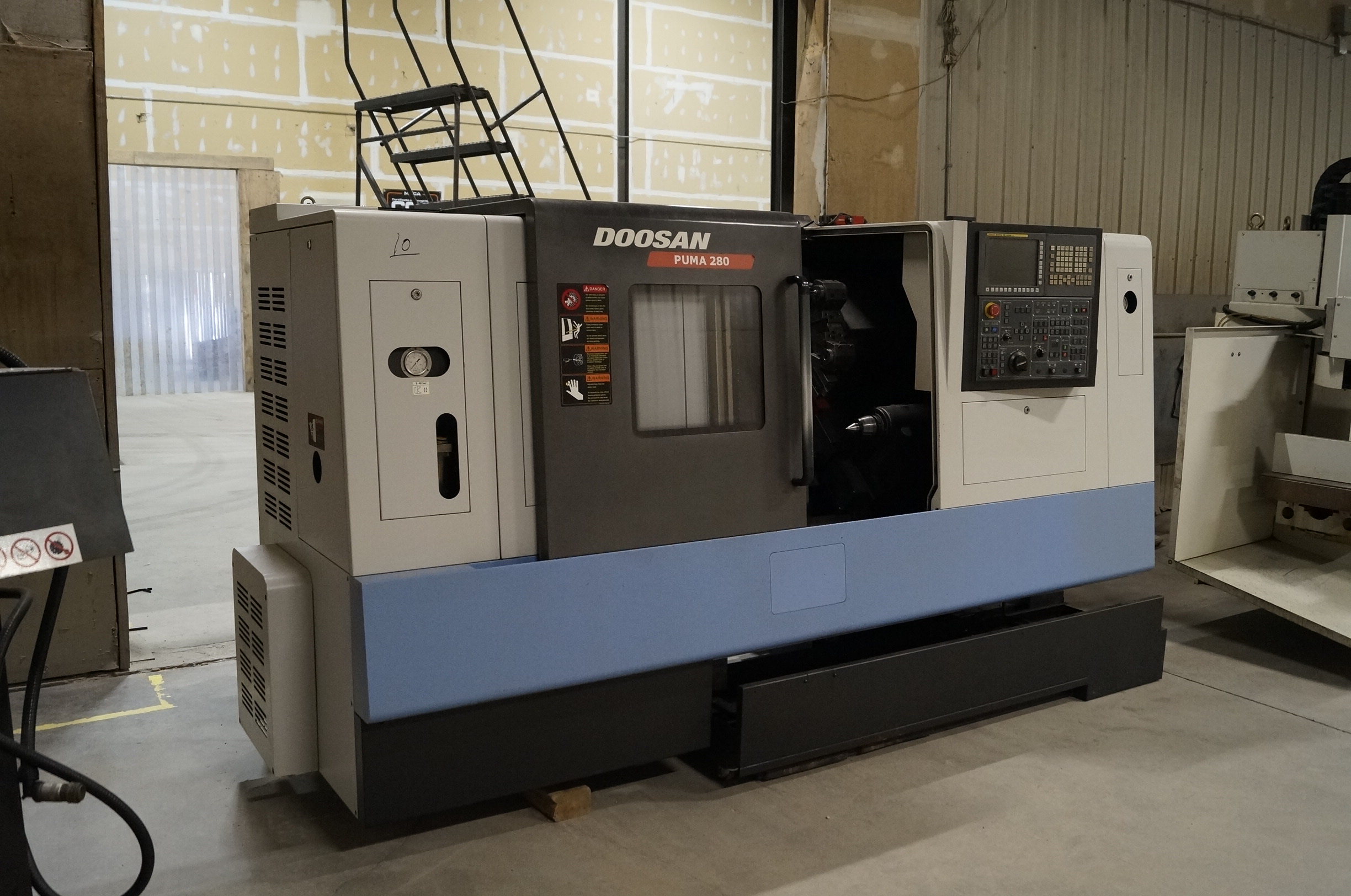

Doosan Puma 280 2009

MACHINE SPECIFICATIONS

• Swing Over Saddle:

  500mm/ 19.68"

• Main Spindle Motor:

  5 hp / 7.5 hp

• Quill Travel:

  100mm/ 3.93"

• Quill Bore Taper:

  MT#5

• Quill Diameter:

  100mm/ 3.93"

• Boring Bar Diameter:

  ø50mm 1.96"

• OD tool height:

  25×25mm/ .98"x.98"

• No. of Tool Stations:

  10

• Travel distance X-axis:

  242mm/ 9.5"

• Spindle Bore Diameter:

  86mm/ 3.38"

• Spindle Bearing Diameter:

  (Front): 136mm/ 5.35"

• Bar Working Diameter:

  76mm/ 2.99"

• Recom. Turning diameter:

  255mm/ 10"

• Swing over Bed:

  20.1?

• Travel distance Z-axis:

  680mm/ 26.77"

• Rapid Traverse X-Axis:

  20m/min

• Rapid Traverse Z-Axis:

  24m/min

• Servo motor X-axis:

  kW 3.0/ 4.02 HP

• Servo motor Z-axis:

  kW 4.0/ 5.3 HP

• Coolant Pump:

  kW 0.4/ 0.53 HP

• Electric power supply(Rated capacity):

  kVA 36.5
