machine specification

• SWING OVER BED
• 30.3"

• SWING OVER SADDLE
• 23.2"

• MAX CUTTING DIAMETER
• 21"

• MAX CUTTING LENGTH
• 82"

• MAX TURNING DIAMETER
• 21.7"

• MAX TURNING LENGTH
• 82.4"

• BORING BAR DIAMETER
• 2.4"

• RECOM. TURNING DIAMETER
• 15.0"

• X-AXIS TRAVEL
• 84.8"

• Z-AXIS TRAVEL
• 84.8"

• NO. OF TOOL STATIONS
• 10 {Base holder}

• CHUCK SIZE
• 18”

• BAR CAPACITY
• 4"

• SPINDLE THROUGH HOLE
• 5.2"

• SPINDLE BORE
• 5"

• BAR WORKING DIAMETER
• 4.6"

• INDEXING TIME
• (1st swivel) 0.25 sec. {1Station Swivel}

• DIAMETER OF TAILSTOCK QUILL
• 4.7"

• QUILL BORE TAPER
• MT#6

machine equipped with

• TOOL PRESETTER
• MANUAL STEADY REST
• CHIP CONVEYOR
• 18" CHUCK
• FANUC CONTROL

machine description

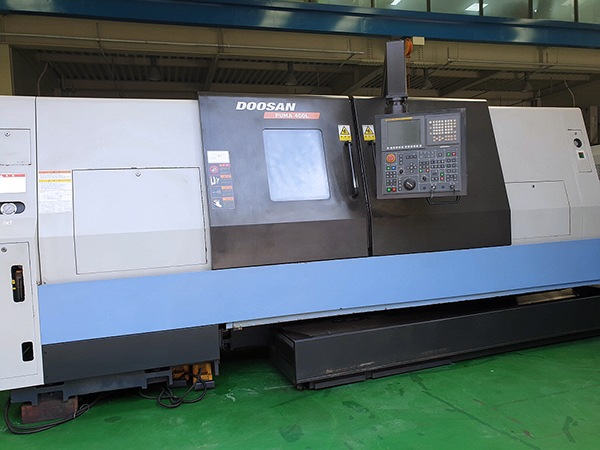

This 2012 used Doosan CNC Lathe features an 82" max cutting length with 18" chuck, a 21" max cutting diameter, a manual steady rest, with a max turning diameter of 21.7", and 82.4" max turning length.
