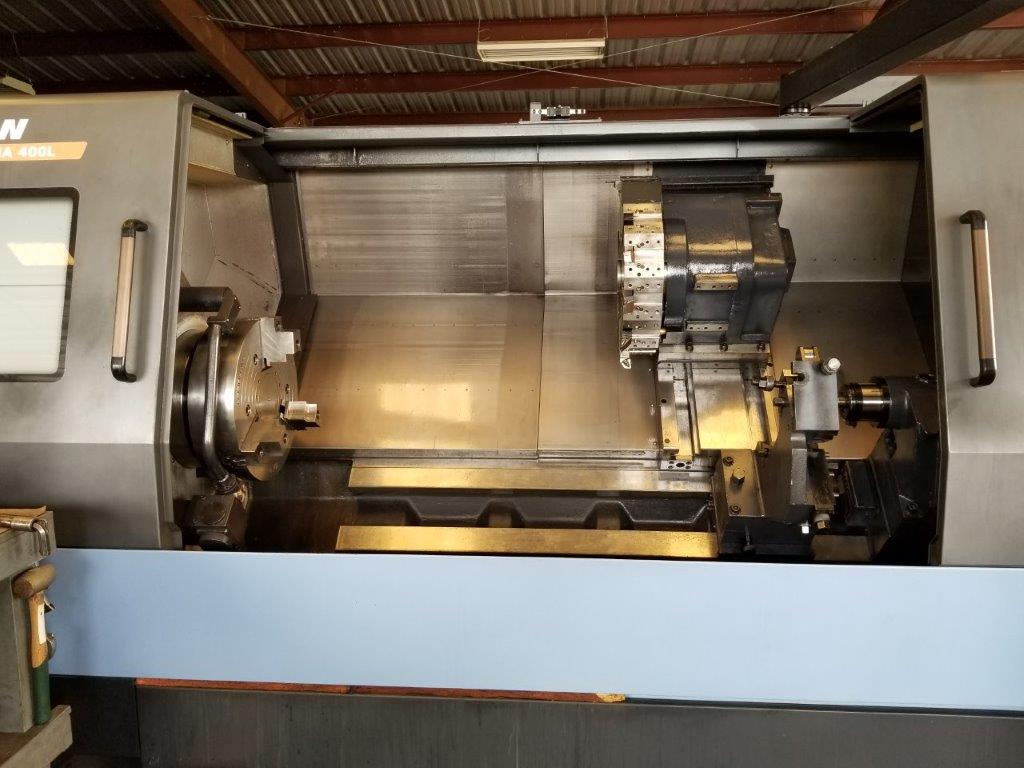

Doosan Puma 400LC 2012

MACHINE SPECIFICATIONS

• Bar Stock Capacity:

  2.0"

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Table Size - L:

  61"

• Pallet Size (inches):

  25"

• Wire Diameter (inches):

  3333

• Max Swing (inches):

  17.32"

• Spindle Speed:

  12,000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• Z - Axis Travel (inches):

  14.7" / 375mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Chuck:

  21" Hyd

• Max Swing:

  30.3"

• Max Turning Length:

  41.1"

• Max Turning Diameter:

  21.7"

• Spindle Bore:

  3.54?

• Spindle Nose:

  A2-8

• Spindle Motor:

  50 HP

• Milling Speed:

  12,000 RPM

• Bar Capacity:

  4.6"

• Turret:

  12 Positions

• X- Axis Travel:

  14.2"

• Z-Axis Travel:

  43.5"

• Rapid Transverse Rates:

  630 IPM / 790 IPM (X/Z)

• Tailstock quill diameter / center:

  4.7" / MT # 5
