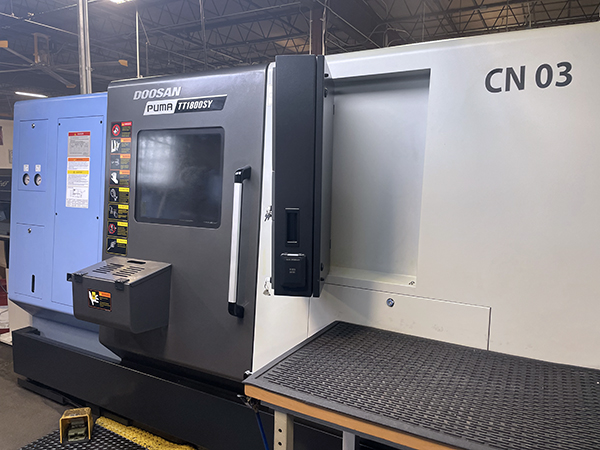

Doosan Puma TT1800SY 2019

machine specifications

• Travel Distance X1-axis: :

  165 mm (6.5 in)

• Travel Distance Z1-axis: :

  700 mm (27.5 in)

• Travel Distance X2-axis: :

  190 mm (7.5 in)

• Travel Distance Z2-axis: :

  720 mm (28.3 in)

• Travel Distance Y-axis::

  100±50 mm (3.9±2 in)

• Rapid Traverse X-axis: :

  20 m/min (787 in/min)

• Rapid Traverse Y-axis: :

  7.5 m/min (295 in/min)

• Rapid Traverse Z-axis: :

  40 m/min (1,575 in/min)

• Rapid Traverse C-axis: :

  600 rpm

• Max Turning Diameter (Upper Turret)::

  ?230 mm (9.1 in)

• Max Turning Diameter (Lower Turret)::

  ?230 mm (9.1 in)

• Max Turning Length::

  230 mm (9.1 in)

• Through Hole Diameter (Left Spindle): :

  ?68 mm (2.7 in)

• Through Hole Diameter (Right Spindle): :

  ?65 mm (2.6 in)

• Chuck Size: :

  8 in

• Speed: :

  5,000 rpm

• Power::

  22 kW (30 Hp)

• Torque::

  : 208 Nm (153 ft-lbs)

• Shank: :

  BMT-55

• Turret Stations: :

  2 x 12/Turret

• Boring Bar Diameter: :

  ?32 mm (1.3 in)

• Rotary Tool Speed: :

  5,000 rpm

• Rotary Tool Power: :

  5.5 kW (7.5 Hp)

• Rotary Tool Torque: :

  47 Nm (34.7 ft-lbs)

• Length: :

  3,955 mm (156 in.)

• Height::

  2,080 mm (82 in.)

• Width::

  2,160 mm (85 in.)

• Weight::

  8,800 kg (19,400 lbs.)
