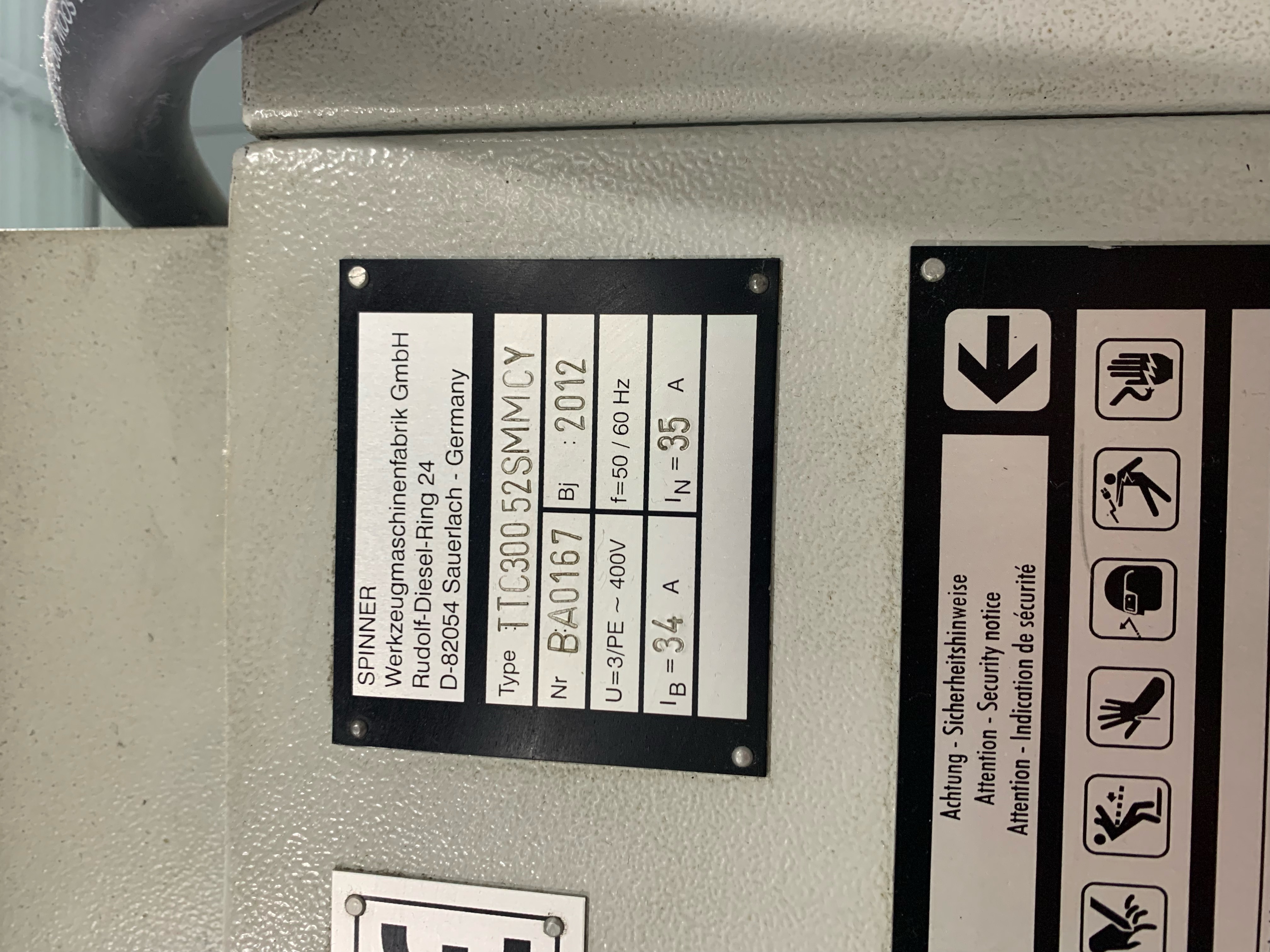

Eurotech STTC-300-52-SMMCY 2012

machine specifications

• Bar Capacity:

  2.55"

• Chuck Type Left / Right Spindle:

  Collet Chuck / Collet Chuck

• Chuck Size:

  6.5"

• Spindle Motor:

  20 HP / 15 HP (Both 30 minutes/continuous)

• X-Axis Travel:

  7"

• Z-Axis Travel:

  17.71"

• Rapid Rate Z Axis:

  945 IPM

• Turret Tooling:

  12 (2) Station

• Rapid Rate X Axis:

  590 IPM

• Max Turning Diameter:

  7.87"

• C Axis Spindle Rotation:

  Both: 0.001 Degree

• Max Turning Length:

  15.75"

• Spindle Nose / Spindle Bore Left / Right:

  A2-6" / 3.15" / 2.56"

• Spindle Speed Left / Right:

  5,000 RPM / 7,000 RPM

• Max Swing:

  15.75"

• Y-Axis Travel:

  +/- 3"

• Rotary Tool Speed:

  6,000 RPM

• Rotary Motor:

  n/a

• Number of Turret Position:

  12 Station each (Both)

• Rapid Traverse Rates X / Z:

  590 IPM / 945 IPM
