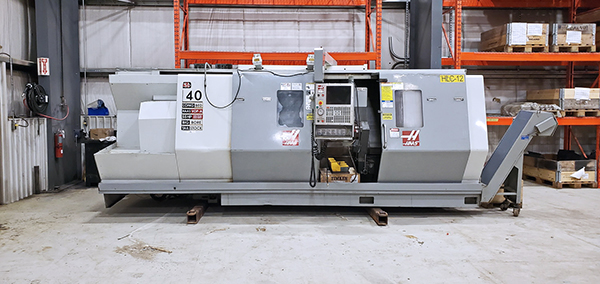

Haas SL-40LB 2007

Sold Image

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

  • MAKE: Haas

  • MODEL: SL-40LB

  • YEAR: 2007

  • TYPE: CNC Lathe

  • CONTROL: Haas

  • REF #: 3663183

MACHINE SPECIFICATIONS

  • Swing:

    40"

  • SWING OVER CROSSLIDE:

    25"

  • Machining Length:

    80"

  • Max Turning Dia:

    25.5"

  • Center Distance:

    89"

  • # Axis:

    2

  • Chuck Size:

    15"

  • Spindle Bore:

    7.08"

  • THROUGH HOLE DRAW TUBE:

    6.496"

  • Power:

    55 HP

  • Max RPM:

    1,400 RPM

  • Spindle Nose:

    A2-11

  • X Axis Travel:

    17"

  • Z Axis Travel:

    80"

  • Tailstock:

    YES

  • Tailstock Travel:

    80"

  • Tailstock Taper:

    MT5

  • Rapid Traverse (x/z):

    710/325 IN/MIN

  • Turret Capacity:

    10

  • Dimensions:

    209" X 95" X 86"

  • Weight:

    31,000 LBS

MACHINE EQUIPPED WITH

  • Big bore option
  • Long bed
  • Tailstock
  • Steady rest
  • Vector dual-drive spindle
  • Chip conveyor
  • Chuck jaws
  • Manuals
