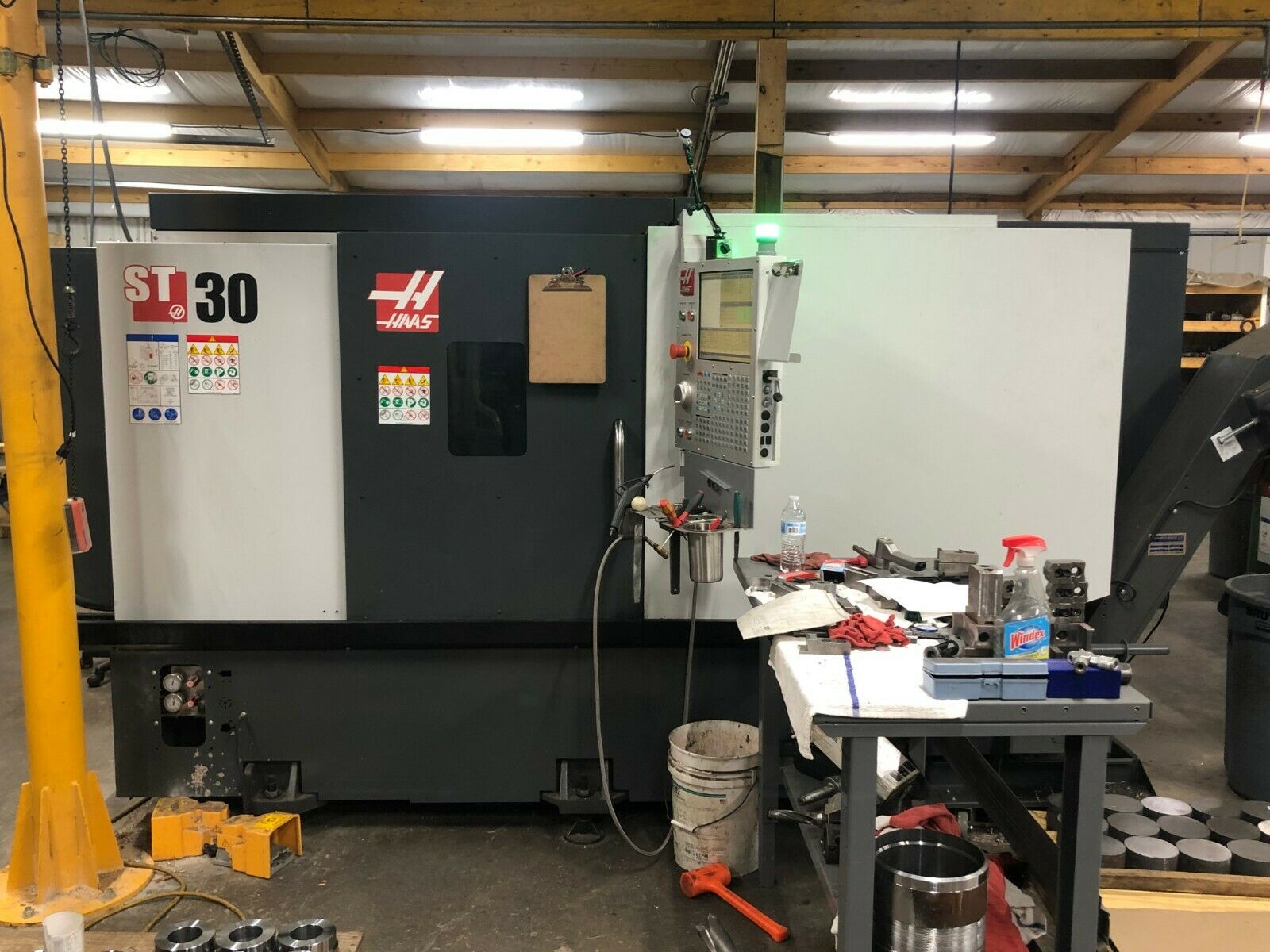

Haas ST-30 2020

MACHINE SPECIFICATIONS

• Bar Capacity:

  3.0"

• Spindle Bore Diameter:

  3.50"

• Spindle Nose:

  A2-6

• Max Torque:

  300 Ft-LB @ 500 RPM

• Max Speed:

  3400 RPM

• Max Rating:

  30 HP

• Rapids on X/z:

  945 In/Min

• Boring Bar Rear Clearance (from back of turret):

  4.0"

• Maximum Number Of Tool Stations:

  12 BOT

• X Axis Travel:

  12.5"

• Max Cutting Length:

  26"

• Max Cutting Diameter:

  21"

• Chuck Size:

  10"

• Swing Over Tailstock:

  23"

• Swing over cross slide:

  20.75"

• Swing Over Front Apron:

  33.75"

• Z Axis Travel:

  26"
