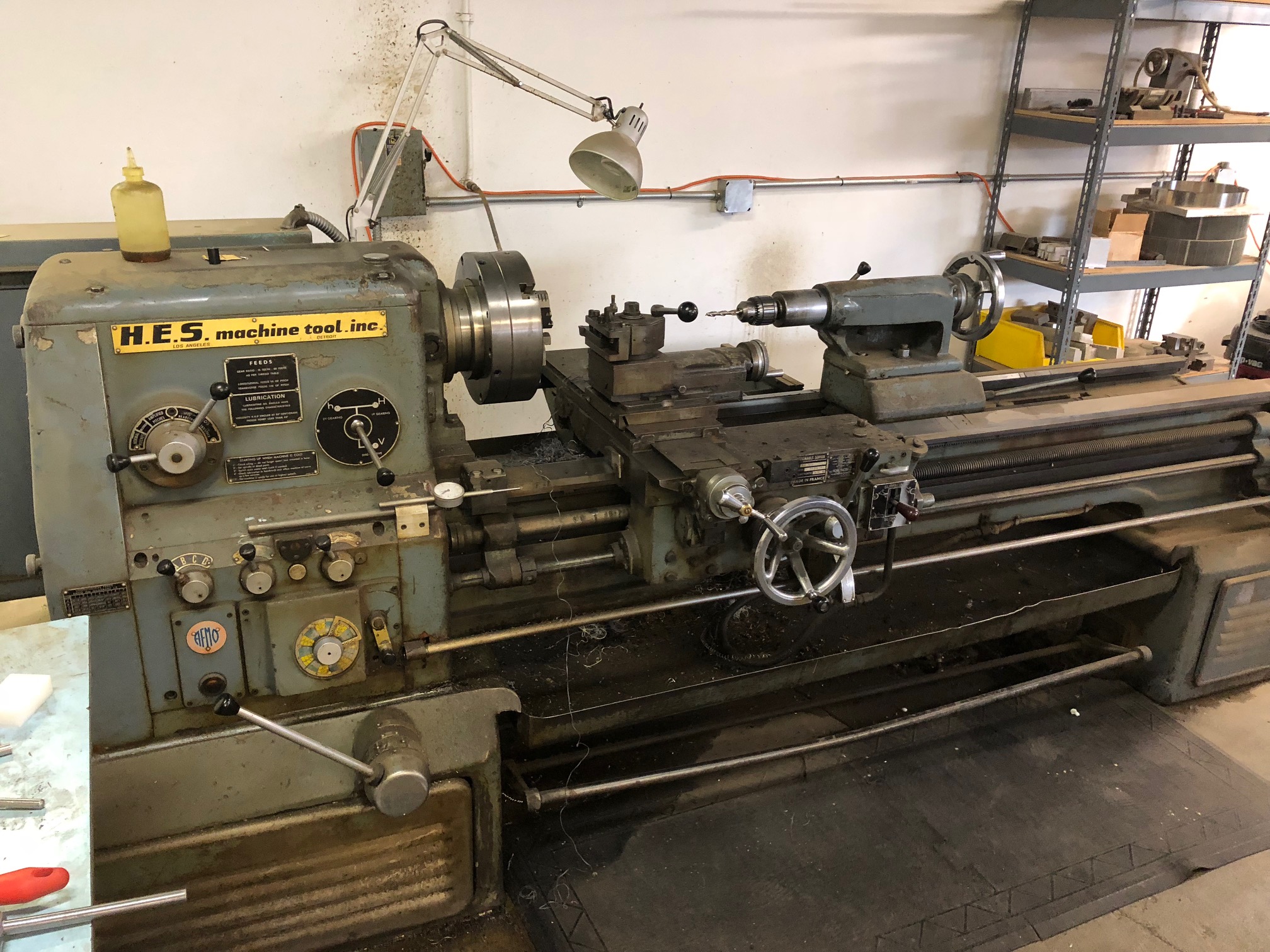

Hes HN500 1966

machine specifications

• Spindle Speed:

  12,000 RPM

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Motor (HP):

  10 HP

• Throat Depth:

  9.45"

• Spindle Nose:

  A1 6"

• Spindle Bore:

  2.04"

• Swing over Bed:

  19.68"

• Swing Over Cast Iron Cross-Slide:

  12.99"

• Swing in Semi Gap:

  23.62”

• Width of Gap with Hole Faceplate:

  9.44”

• Tool Carriage Travel:

  6.14”

• Tool Section:

  .78"

• Cross Feed Screw Pitch:

  .19"

• Taper in Sleeve:

  No 5

• Sleeve Diameter:

  3.3"

• Sleeve Travel:

  5.9"
