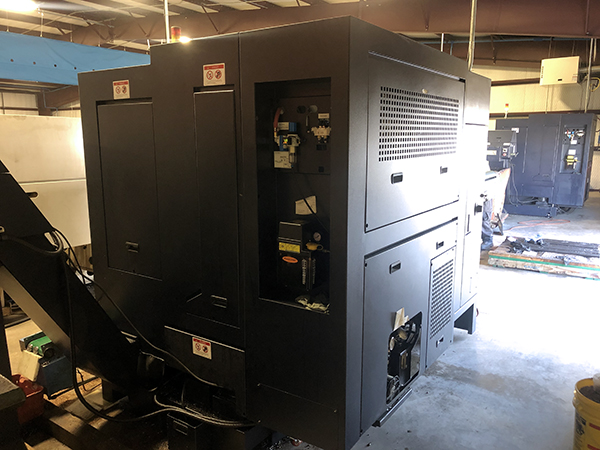

Hwacheon Cuttex 180AYMC 2018

machine specifications

• Chuck Size:

  15" Hyd. Chuck

• Type of Spindle Nose:

  A2-5 ASA

• Max Spindle Speed:

  6,000 RPM

• Spindle Motor:

  20/15 HP

• Max Bar Size:

  2.01"

• Spindle Bearing Diameter:

  3.54"

• Through Spindle Hole Diameter:

  2.44"

• Standard Cutting Diameter:

  9.06"

• Swing over Bed:

  27.5"

• Max Cutting Length:

  10.96"

• Number of Tool Stations:

  12 each

• Turret Indexing Time:

  0.344 sec/step

• Max Stroke (X / Z / Y):

  8.66 / 22.83 / ±2.17 inch

• Max Cutting Diameter:

  11.81"

• Feed Motor (X / Z / Y):

  4 / 2.4 / 4 HP

• Tool Size:

  .D: Ø0.98, I.D: Ø1.57"

• Rapid Speed (X / Z / Y):

  1,417 / 1,417 / 394 ipm

• Max. Spindle Speed (Turnmill):

  5000 RPM

• Spindle Motor (Turnmill):

  7.4 / 5 HP

• Min Index Angle (Turnmill):

  0.0010 deg

• Endmill/Collet Size (Turnmill):

  Max Ø0.63 / ER 25 inch

• Center Taper:

  #4 MT

• Coolant:

  19.81 gal

• Electrical power supply:

  40 kVA

• Floor Space (L × W x H):

  98.43" x 66.93" x 78.54"

• Weight::

  7937 lb
