Mazak Cybertech Turn 4500M 2012

machine specification

• CHUCK SIZE
• 24"

• HOLE THRU
• 12"

• DISTANCE BETWEEN CENTER
• 120"

• CUTTING HOURS
• 1027 total

• MAXIMUM SWING
• 33.8"

• SPINDLE SPEED
• 2,400 rpm

• SPINDLE MOTOR (HP)
• 50 HP

machine equipped with

• MATRIX NEXUS CONTROL
• FRONT AND REAR CHUCK
• HYDRAULIC STEADY
• MILLING ON TURRET
• C AXIS
• CHIP CONVEYOR
• OIL CHILLER
• 12 POSITION TURRET
• HIGH PRESSURE PUMP
• REMOTE JOG HANDLE
• DEEP HOLE BORING WITH AUTOMATIC CHANGER
• EIA SPIRAL & EIA 3D COMP
• ROTATION WITH GEOMETRIC & SCALING EXT DATA I/O
• THREAD & INVERSE TIME
• AUTO TLM WITH POLAR COORDINATES INPUT
• COMPARISON STOP & G54.1 600 VARIABLE OFFSETS
• EIA HERICAL TAP CYCLE & EIA PATTERN CYCLE
• TILTED WORK PLANE

machine description

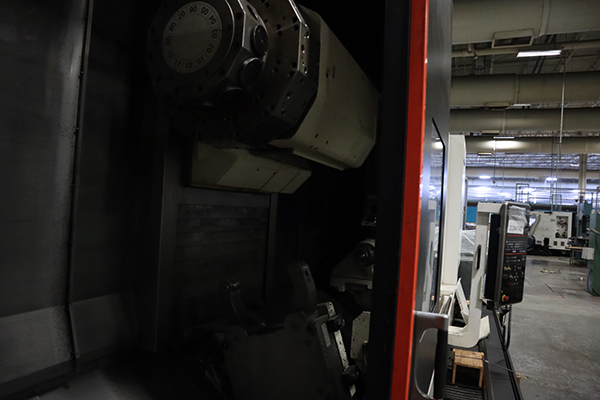

Used Mazak Cybertech Turn 4500M. This pre-owned CNC Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Mazak CNC Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
