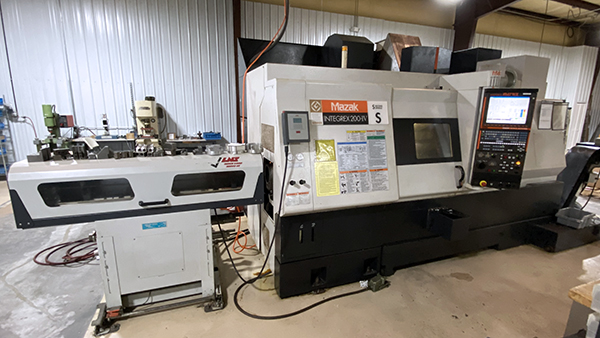

Mazak Integrex 200-IVS 2007

machine specification

• CHUCK DIAMETER
• 8" (R) Second Spindle

• STANDARD CHUCK DIA. MAIN SPINDLE
• 8" (L)

• MAX SWING
• 26"

• MAX SWING OVER CARRIAGE
• 19.5" -26"

• MAX CUTTING DIAMETER
• 26" (chucking Diameter)

• MAX CUTTING LENGTH
• 40"

• SPINDLE NOSE
• A2-6

• SPINDLE BORE
• 2.99"

• MAX BAR WORK
• 2"

• MAX SPINDLE SPEED
• 35 - 5000 RPM

• SPINDLE INDEX (PROGRAMMABLE)
• 0.0001 Degree

• SPINDLE HORSEPOWER
• 20/30 H.P. (A.C.)

• SPINDLE TORQUE
• 258.1 ft-lbs

• SECOND SPINDLE NOSE
• A2-6

• TYPE OF TURRET
• 1 Position, w/ATC

• TOOL SHANK HEIGHT
• 1.0"

• TOOL SIZE
• 1.5" (Boring Bar Max. Dia.)

• MAGAZINE CAPACITY
• 40 Tools

• METHOD OF TOOL SELECTION
• Random

• TOOL TO TOOL ATC TIME
• 1.3 Sec.

• MAX TOOL DIAMETER
• 3.54" (w/All Pockets Full)

• MAX TOOL DIAMETER (ADJACENT EMPTY)
• 4.92"

• MAX TOOL LENGTH (FROM GAGE LINE)
• 11.81"

• MAX TOOL WEIGHT
• 22 lbs.

• ATC TOOL SHANK
• Mazak KM63

• ROTARY TOOL SPINDLE SPEED
• 12,000 RPM

• ROTARY TOOL SPINDLE
• (20% ED). 25 H.P. (A.C.)

• MAXIMUM FACE MILL
• 4"

• MAXIMUM END MILL
• 1.25"

• MAXIMUM DRILL
• 1.18"

• MAXIMUM TAP
• 1-8 UNC

• B-AXIS
• 225 degrees

• Y-AXIS TRAVEL
• +/- 3.15"

• X-AXIS TRAVEL
• 22.83"

• Z-AXIS TRAVEL
• 41.14"

• W-AXIS TRAVEL
• 41.34" (second headstock)

• Y-AXIS RAPID FEEDRATE
• 1024 IPM

• X-AXIS RAPID FEEDRATE
• 1496 IPM

• Z-AXIS RAPID FEEDRATE
• 1496 IPM

• SECOND SPINDLE BORE
• 2.99"

• SECOND SPINDLE MAXIMUM BAR WORK
• 2"x 34.6" deep from chuck face (2" thru optional)

• SECOND SPINDLE SPEED
• 35 - 5000 RPM

• SECOND SPINDLE HORSEPOWER (CONT./30 MIN)
• 20/25 HP (A.C.)

• SECOND SPINDLE TORQUE
• 241 ft-lbs

• SECOND HEADSTOCK W-AXIS
• 1181 IPM

• C-AXIS RAPID FEEDRATE
• 555 RPM

machine equipped with

• MAZATROL MATRIX CONTROL
• 15" COLOR LCD
• CHIP CONVEYOR SIDE DISP
• AUTO PARTS CATCHER
• LNS QUICK LOAD SERVO BARFEEDER
• 40-TOOL MAG. KM63
• (1) 8” CHUCK (MAIN)
• (1) ROYAL COLLET CHUCK
• ALL AVAILABLE TOOL HOLDERS & MANUALS
