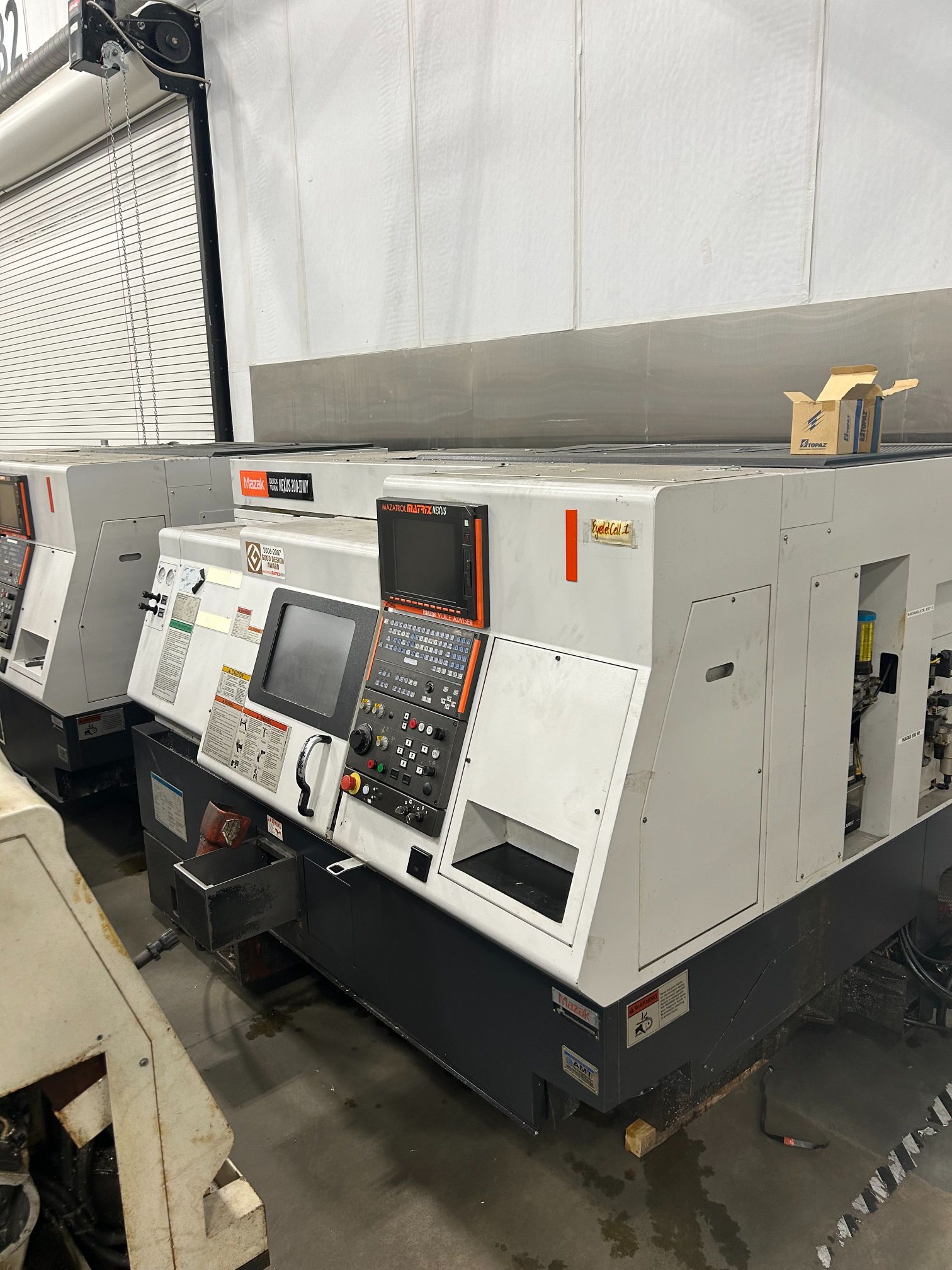

Mazak QTN-200MY-II 2007

MACHINE SPECIFICATIONS

• Work-capacity Max. swing diameter :

  26.5" in

• Work-capacity Max. machining diameter :

  14.9" in

• Work-capacity Max. machining length :

  21.1" in

• Work-capacity Max. bar material diameter :

  2.5" in

• Travel X-axis stroke:

  9" in

• Travel Y-axis stroke:

  3.9" in +/-1.9" in

• Travel Z-axis stroke:

  22.6" in

• Main-spindle speed:

  35-5.000 RPM

• Main Spindle Motor:

  26 kW

• Max. Torque:

  465 Nm

• Spindle Nose:

  A2 – 6“

• Spindle Bore:

  2.99"

• Spindle indexing increments:

  0 deg - 360 deg/ 0.001 deg

• Rotary tools Spindle speed:

  25-4.500 RPM

• Rotary tools Power:

  5,5 kW

• Rotary tools Max. torque:

  35 Nm

• Rapid Traverse Rate X-Axis:

  1.18"in/min

• Rapid Traverse Rate Y-Axis:

  .82" in/min

• Rapid Traverse Rate Z-Axis:

  1.29" in/min

• Rapid traverse rate C-axis:

  555 RPM

• Cutting feed rate X/Y/Z-axis:

  0.7" in/min

• Cutting feed rate Tailstock center:

  MK 5

• Cutting feed rate Tailstock travel:

  21.6" in

• Electrical power supply:

  47,4 KVA

• Machine Weight:

  11243.5 lbs

• Machine size (L x B x H) approx.:

  .10" x .07" x .078"
