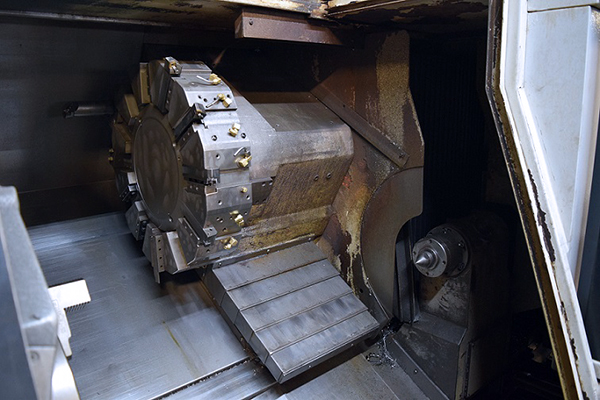

Mazak QTN 400-II 2007

MACHINE SPECIFICATIONS

• Chuck Size:

  15"

• Max Swing:

  33.27"

• Max Machining Diameter:

  22.83"

• Max Turning Length:

  40.25"

• DISTANCE BETWEEN CENTERS:

  40.25"

• Bar Capacity:

  4.587"

• Z-Axis Travel:

  42.13"

• X-Axis Travel:

  13.38"

• Spindle Nose:

  A2-11"

• Spindle Bore:

  5.2"

• Spindle Speeds:

  2,500 RPM

• Spindle Motor:

  40 HP

• Spindle Torque:

  1363 ft./lbs.

• Rapid Traverse Rates:

  1181 IPM

• Turret Type Sides / Positions:

  12 Sided/24 Stations
