machine specification

• SWING OVER BED
• 28.7"

• MAX TURNING DIAMETER
• 25.9"

• TURNING LENGTH
• 58.9"

• DISTANCE BETWEEN CENTERS
• 69.2"

• CHUCK SIZE 1, 2
• 12"

• SPINDLE NOSE 1, 2
• A2-8

• BAR CAPACITY 1, 2
• 3.5"

• SPINDLE BORE DIAMETER 1, 2
• 4.1"

• SPINDLE SPEEDS 1, 2
• 3000 RPM

• SPINDLE HORSEPOWER 1, 2
• 40 HP

• B - AXIS HEAD INDEXING
• .0001 Degree

• B - AXIS MILLING SPINDLE SPEED
• 12,000 RPM

• B - AXIS MILLING SPINDLE HORSE POWER
• 24.7 HP

• ATC FOR MILLING SPINDLE
• 100 ATC

• TAILSTOCK TAPER
• MT 5

• TAILSTOCK QUILL DIAMETER
• 4.3"

• TOOL DIAMETER
• 2.7" / 5.5"

• TOOL LENGTH
• 15.7"

• TOOL WEIGHT
• 22 Lbs.

• TAILSTOCK TRAVEL
• 63.4"

• MAXIMUM TURNING DIAMETER (SPINDLE)
• 25.9"

• X - AXIS TRAVEL X1, X2, X3
• 29.5"

• Z - AXIS TRAVEL Z1, Z2, Z3
• 1968 IPM

• RAPID TRAVERSE RATES X1, X2, X3
• 1968 IPM

• RAPID TRAVERSE RATES Y1, Y2, Y3
• 1181 IPM

• RAPID TRAVERSE RATES Z1, Z2, Z3
• 1968 IPM

• TAILSTOCK QUILL DIAMETER
• 4.3"

• TAILSTOCK TAPER
• MT 5

• TAILSTOCK TRAVEL
• 63.4"

machine equipped with

• 100 ATC AUTO TOOL CHANGER
• 1ST SPINDLE OUTPUT SWITCHING FUNCTION
• BELL - SHAPED ACC. / DEC. AFTER CUTTING FEED
• CONTROLLABLE AXIS COMPENSATION
• CONTROL AXIS NUMBER
• SIMULTANEOUS AXIS EXPANSION
• CYLINDRICAL INTERPOLATION
• HELICAL INTERPOLATION
• INCH/METRIC SELECTION

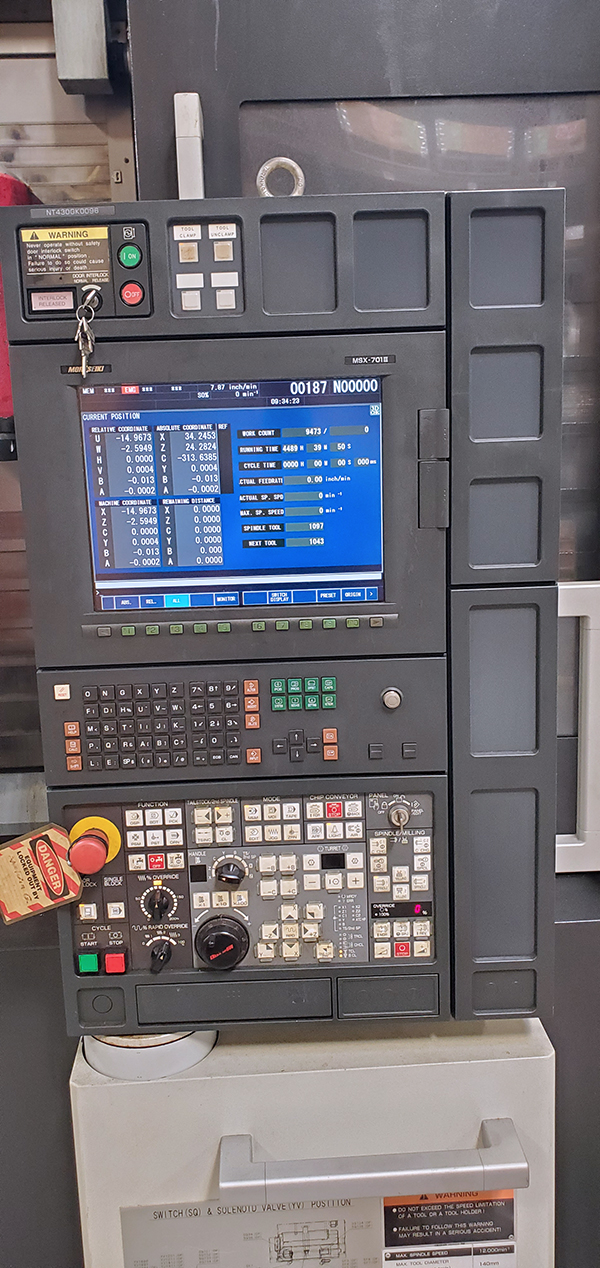

• MORI SEIKI MSX 701 II CNC CONTROL
• NANO SMOOTHING FOR 5 AXIS MACHINING
• POLAR COORDINATE INTERPOLATION
• RUN HOUR AND PARTS COUNTER
• STRAIGHTNESS COMPENSATION
• TOOL GEOMETRY/WEAR OFFSET
• TOOL PRESETTER
• WORK COORDINATE SYSTEM
• 1ST SPINDLE ORIENTATION
• 3RD / 4TH REFERENCE RETURN
• CONSTANT SURFACE SPEED CONTROL
• CUSTO MACRO B
• EXTERNAL DECELERATION
• HIGH SPEED SKIP FUNCTION
• MAPPS CONVERSATIONAL
• MULTIPLE REPETITIVE CYCLE II
• FIXED CYCLE
• PITCH ERROR COMPENSATION
• RIGID TAPPING
• SPINDLE SYNCHRONOUS CONTROL
• THREAD CUTTING RETRACT
• TOOL OFFSET FOR MILLING AND TURNING FUNCTION
• UNEXPECTED DISTURBANCE FUNCTION
• Y AXIS OFFSET
