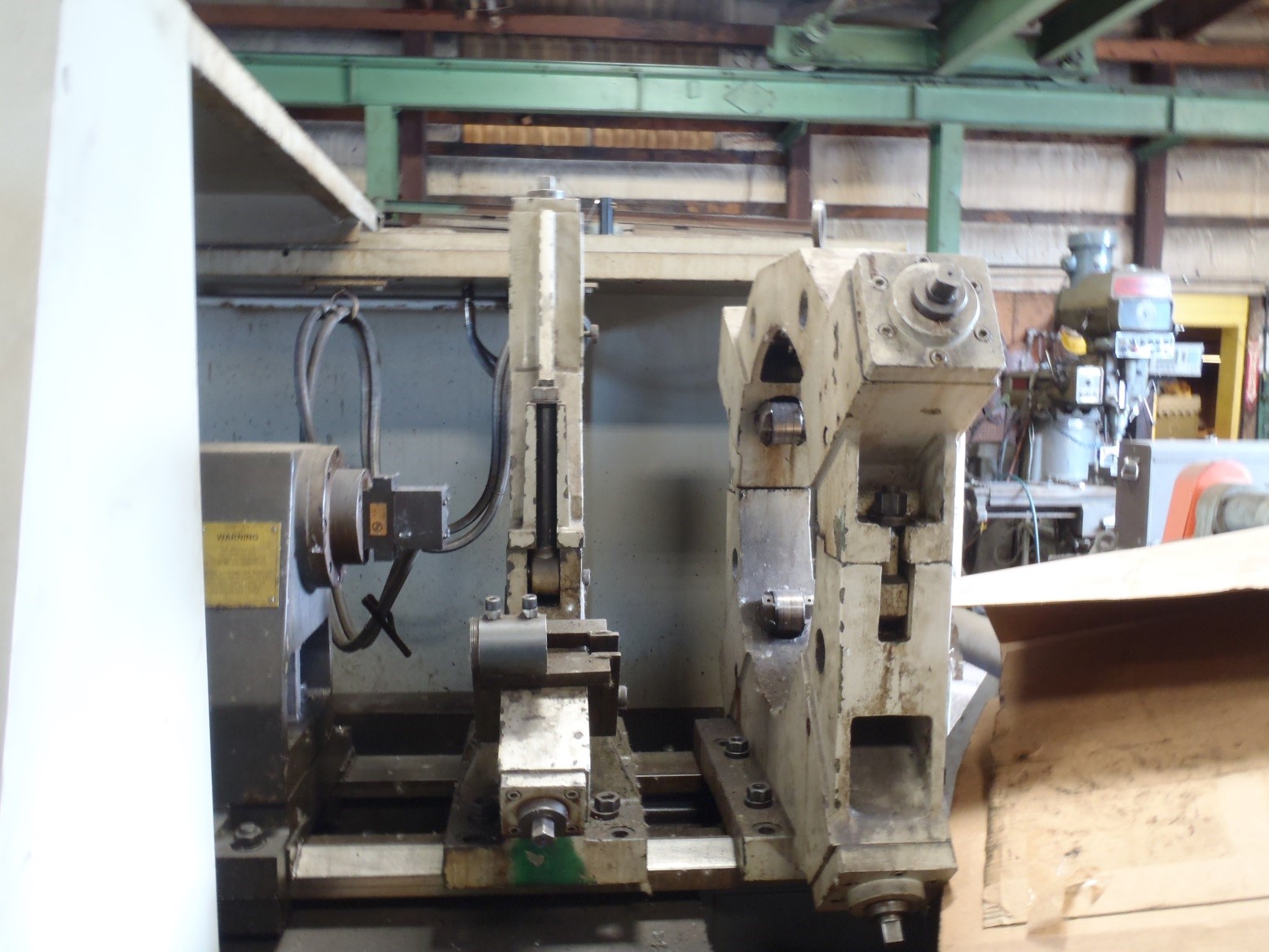

Nardini Logic 500G 1995

machine specifications

• Table Size - W:

  30"

• Spindle Taper (CAT/BT):

  HSK-463

• Resonator ( Type ):

  55

• Z - Axis Travel (inches):

  14.7" / 375mm

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  50 HP

• Spindle Bore:

  4.72"

• Spindle Nose:

  A1-11

• Max Swing (inches):

  17.32"

• Maximum Turning Length:

  137.7"

• Chuck Size (Inches):

  8"

• Dist. Between Centers (inches):

  157.4"

• Swing over cross slide:

  26.5"

• Tailstock Quill Diameter:

  6.69"

• Tailstock Taper:

  6 MT

• Rapid Traverse X / Z:

  393 IPM

• Bi-Directional Turret Positions:

  8

• Quill Stroke:

  11.81"
