Okuma LB-35 II 2001

machine specification

• MAX TURNING DIAMETER
• 19.3"

• MAX TURNING LENGTH
• 60"

• SPINDLE NOSE
• A2-15

• SPINDLE BORE
• 7.08"

• SPINDLE SPEED
• 40-1400 RPM

• SPINDLE MOTOR
• 50/40 HP

• X-AXIS TRAVEL
• 12.99"

• Z-AXIS TRAVEL
• 64"

• TURRET POSITIONS
• 12

• CHUCK SIZE
• 18"

• MAX BAR CAPACITY
• 6.9"

machine equipped with

• OSP-U100L CONTROL
• TAIL STOCK
• 18" AIR CHUCK W/ 7" THRU HOLE
• CHIP CONVEYOR
• PREPPED FOR STEADY REST

machine description

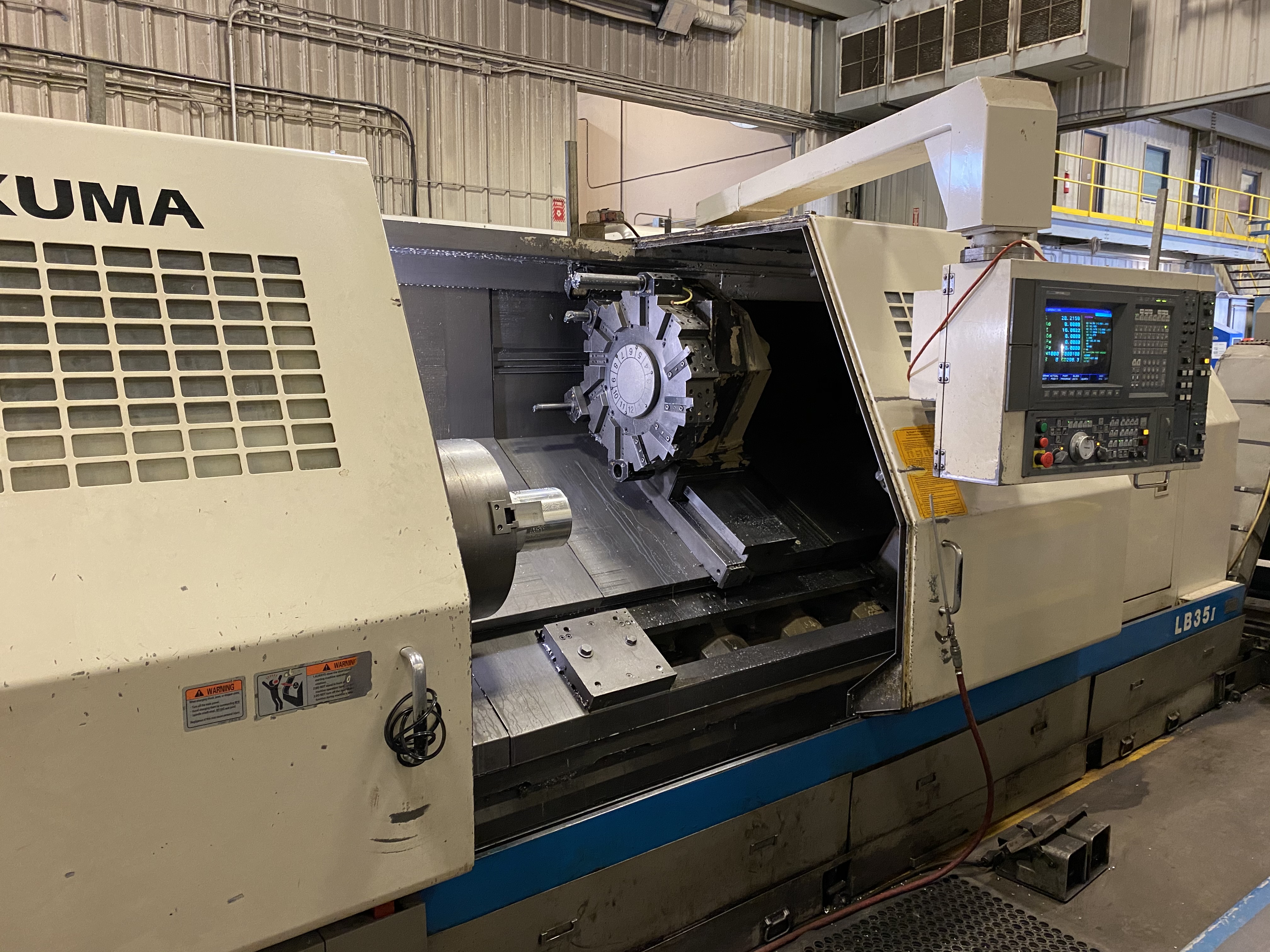

New in 2001, this Okuma LB35 II CNC Lathe - is currently available for inspection. The CNC Lathe features a maximum turning diameter of 19.3”, an 18” chuck, 12 turret positions, and a 1400 RPM spindle speed. The machine also comes equipped with a tail stock, a chuck, a chip conveyor, and it is prepped for steady rest. Contact MMI for further details or to schedule an inspection.
