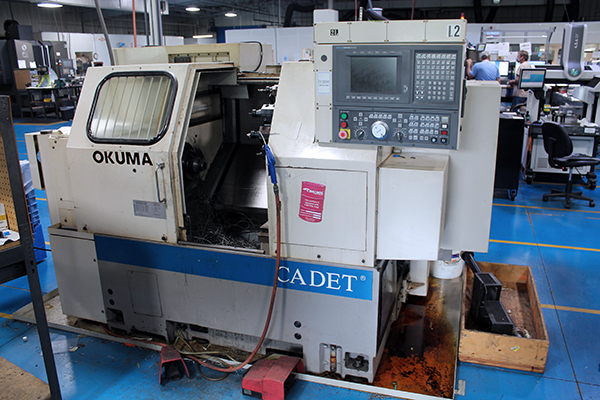

Okuma LNC-8C 1992

MACHINE SPECIFICATIONS

• Spindle Nose:

  A2-8

• Tailstock Taper:

  MT-5

• Tailstock Quill Stroke:

  4.72?

• Tailstock Quill Diameter:

  3.94?

• Turret Index Time:

  0.9 Second

• Turret Capacity:

  12 Stations

• Spindle Motor:

  15 kw

• Spindle Speed:

  65-3500 RPM

• Spindle Bore:

  3.15?

• Max Turning Diameter:

  9.84"

• Rapid Traverse Z:

  591 IPM

• Rapid Traverse X:

  472 IPM

• Z-Axis Travel:

  20.47?

• X-Axis Travel:

  6.89?

• DISTANCE BETWEEN CENTERS:

  22.4?

• Swing over Bed:

  15.75"

• Max Bar Capacity:

  3.0"

• Max Turning Length:

  19.59"
