Okuma Space Turn LB400-M 2000

machine specification

• MAX SWING (INCHES)
• 17.32"

• SPINDLE MOTOR (HP)
• 20 HP

• SPINDLE SPEED
• 12,000 RPM

• Z - AXIS TRAVEL (INCHES)
• 14.7" / 375mm

• X - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• TURRET CAPACITY
• 8 Positions

• TOOL CHANGER TYPE
• 60 ATC

• THROAT DEPTH
• 9.45"

• TABLE SIZE - W
• 30"

• TABLE SIZE - L
• 61"

• PALLET SIZE (INCHES)
• 25"

• BAR STOCK CAPACITY
• 2.0"

• SPINDLE TAPER (CAT/BT)
• HSK-463

• Y - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• CHUCK SIZE (INCHES)
• 8"

• C AXIS
• 360 (0.001 deg Increments)

• SPINDLE BORE
• 4.33"

• SWING OVER SADDLE
• 18.9"

• MAXIMUM CUTTING DIAMETER
• 16.54"

• MAXIMUM CUTTING LENGTH
• 23.6"

• RAPID RATES
• 787 IPM / 984 IPM

• TURRET POSITIONS
• 12

• LIVE TOOL SPEED
• 30 - 3000 RPM

machine equipped with

• CINCINNATI SUPERIOR COLLET CHUCK
• LIVE TOOL HOLDERS (5 RADIAL
• 2 AXIAL)
• TOOL PRESETTER
• MISC. SPINDLE LINERS
• CHIP CONVEYOR
• TAILSTOCK

machine description

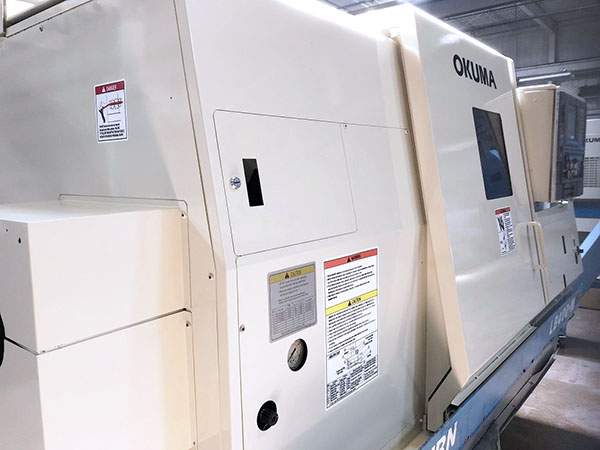

This used CNC Lathe - Okuma Space Turn LB400 M - features a Cincinnati superior collet chuck, live tool holders including two axial and 5 radial, a maximum swing of 24.4", 12 turret positions, a tailstock and a chip conveyor.
