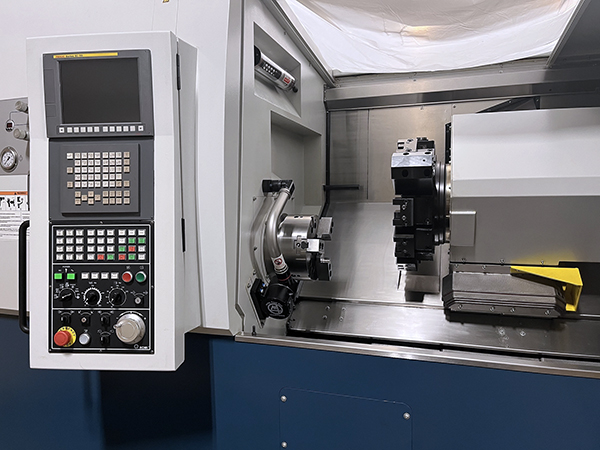

ROMI GL-400M 2016

machine specification

• MAXIMUM DIAMETER OVER COVER (Z-AXIS)
• 675mm (27")

• MAX CUTTING DIAMETER
• 400mm (15.7")

• MAXIMUM CUTTING DISTANCE BETWEEN CENTERS
• 1140mm (45")

• X-AXIS TRAVEL
• 250mm (9.8")

• Z-AXIS TRAVEL
• 1140mm (45")

• SPINDLE NOSE
• A2-8

• CHUCK
• 10" Hydraulic Chuck

• BAR CAPACITY
• 64mm (2.52")

• ATC
• 12 Tool

• SPINDLE SPEED
• 2500 RPM

machine equipped with

• PROGRAMMABLE TAILSTOCK WITH BUILT-IN MT-4
• HYDRAULIC CHUCK 254MM (10") (SERRATION 1/16" X 90º) BAR CAPACITY 64MM (2.52")
• LONGITUDINAL HINGED BELT CHIP CONVEYOR
• AUTOTRANSFORMER
• 15 BAR COOLANT PUMP
• OIL SKIMMER
• STATUS LIGHT INDICATOR
• FOOT SWITCH FOR CHUCK
• FOOT SWITCH FOR TAILSTOCK
• TWO PROGRAMMABLE PRESSURES FOR HYDRAULIC CHUCK
• TOOL SETTER

machine description

Used 2016 ROMI GL-400M for sale. This pre-owned ROMI CNC Lathe is located in the USA. This CNC Lathe is available for a limited time, call us today for a quote. If you have any questions about our ROMI GL-400M listing, contact us and we will be happy to help.
