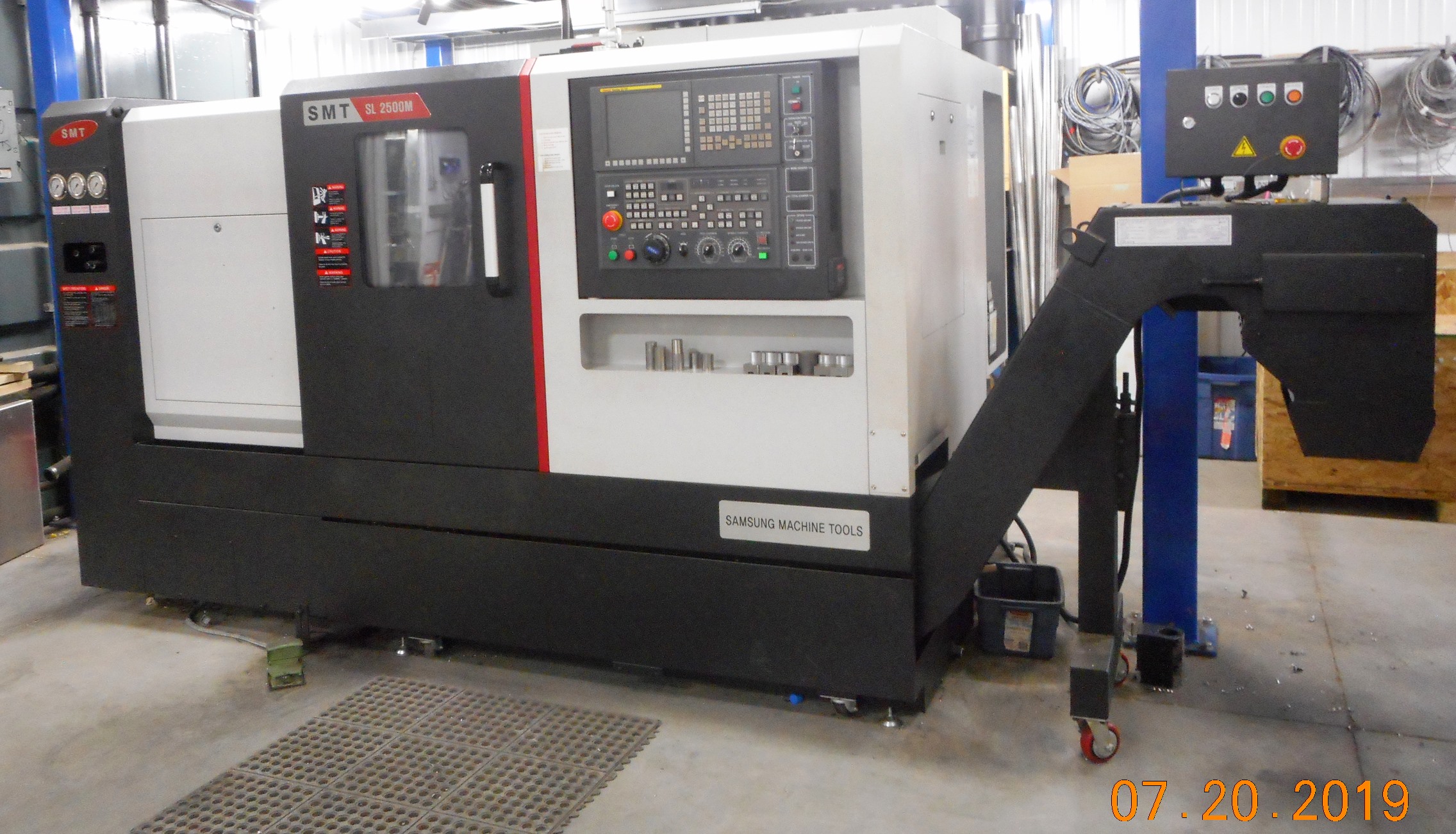

Samsung SL2500M 2004

machine specifications

• Pallet Size (inches):

  25"

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Table Size - L:

  61"

• Wire Traveling Speed:

  22

• Bar Stock Capacity:

  2.0"

• Max Swing (inches):

  17.32"

• Spindle Speed:

  12,000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• Z - Axis Travel (inches):

  14.7" / 375mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• Resonator ( Type ):

  55

• X-Axis Travel:

  14.3"

• Z-Axis Travel:

  43.5"

• Swing over Bed:

  20.1?

• Power Consumption:

  43 kVA

• Coolant Pump Motor:

  1.2 hp (65 psi)

• Number of Tool Stations:

  12 Tools (BMT65)

• Rapid Traverse ( X/Z ):

  945 IPM / 1181 IPM

• C-Axis Min. Programmable Angle:

  0.001 deg

• Draw Tube I.D.:

  3.03”

• Bore Diameter:

  3.39”

• Main Spindle Motor:

  5 hp / 7.5 hp

• Spindle Nose:

  A2-8

• Chuck Size:

  15" Hyd. Chuck

• Max Turning Length:

  41.1"

• Max Turning Diameter:

  21.7"

• Swing over Cross-slide:

  18.90”

• Voltage/Phase:

  220V±10%, 60 Hz, 3
