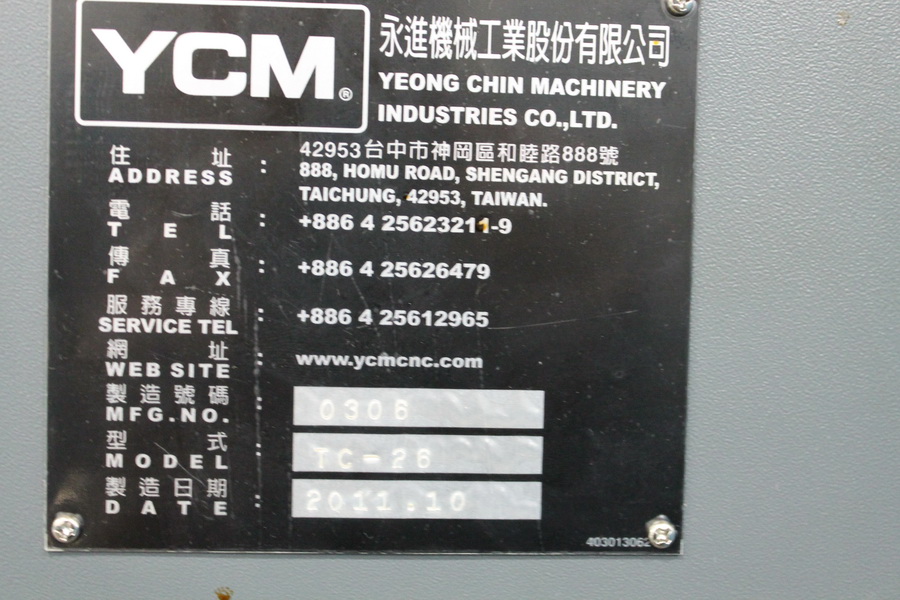

YCM TC-26 2011

machine specifications

• Wire Traveling Speed:

  22

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Taper (CAT/BT):

  HSK-463

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Tool Changer Type:

  60 ATC

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  20 HP

• Spindle Nose:

  A2-8

• Max Swing (inches):

  17.32"

• Swing Over Carriage:

  13.7"

• Chuck Size (Inches):

  8"

• Bar Stock Capacity:

  2.0"

• Dist. Between Centers (inches):

  27.5"

• Max. Turning Diameter:

  17.7"

• Max. Turning Length:

  25.5"

• Hole Through Spindle:

  3.54"

• Gear Ranges:

  2 Max.

• Torque:

  535 Ft. Lbs.

• Rapid Traverse Rate:

  590/787

• IPM Turret Tool Positions:

  12

• Tailstock Quill Diameter:

  3.93"

• Tailstock Quill Taper:

  MT # 5

• Tailstock Quill Stroke / Travel:

  20.8"
