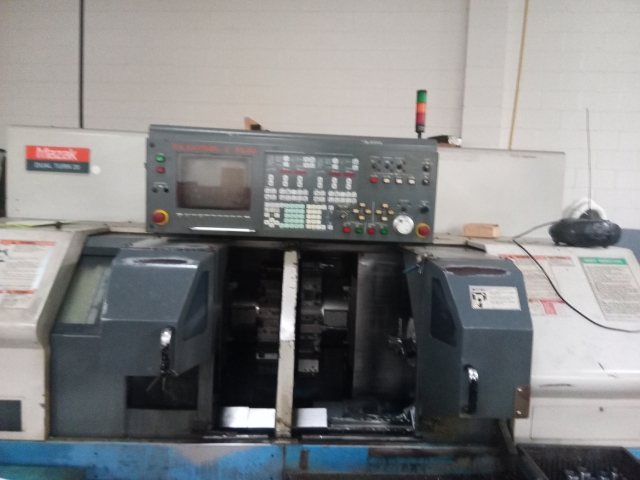

Mazak Dual Turn 20 1996

machine specifications

• Standard Cutting Diameter:

  10.00"

• Max Swing Diameter:

  12.6"

• Max Cutting Dia. for Bar Work:

  2"

• Max Cutting Length:

  5.91" (for cutting work)

• Distance Between Spindle Faces:

  49.21" (BothHeads @ Home Position)

• Spindle Bore:

  3.54?

• Number of Speed Ranges:

  1

• Spindle Horsepower:

  15/20 A/C (Cont/30 Min.)

• Type of Turret:

  12 Position/Drum

• Total No. of Tools:

  24 (12 X 2)

• Travel X-Axis (Turret No. 1 and 2 ):

  9.06"

• Travel Z-Axis (Head No. 1 and 2 ):

  19.69"

• Z-axis:

  197 IPM
