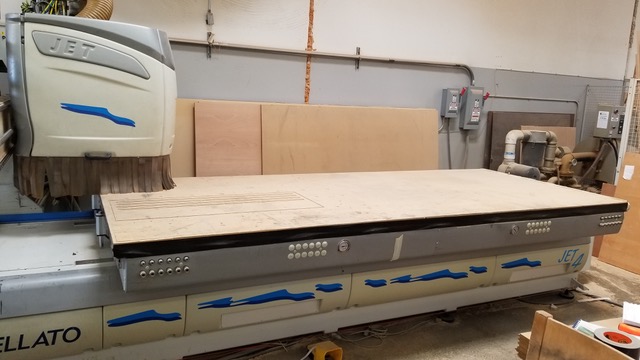

Busellato JET 4 RT 2004

machine specification

• TABLE SIZE - L
• 61"

• CHUCK SIZE (INCHES)
• 8"

• X - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• Y - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• Z - AXIS TRAVEL (INCHES)
• 14.7" / 375mm

• SPINDLE TAPER (CAT/BT)
• HSK-463

• SPINDLE SPEED
• 12,000 RPM

• MAX SWING (INCHES)
• 17.32"

• BAR STOCK CAPACITY
• 2.0"

• PALLET SIZE (INCHES)
• 25"

• TABLE
• 5' x 12'

• TABLE SIZE - W
• 30"

• THROAT DEPTH
• 9.45"

• TOOL CHANGER TYPE
• 60 ATC

• TURRET CAPACITY
• 8 Positions

• VOLTAGE
• 480

• ROTARY TOOL
• 10 Position

• RPM
• 24,000

• SPINDLE MOTOR
• 50 HP

• WORK AREA TRAVEL
• X=147.2" Y=61.0" X=7.9"

machine equipped with

• VACUUM PUMP WITH 4 ZONES
• HSK F63 CONE TOOL HOLDER
• WINDOWS NT 2000 32 BIT OPERATING SYSTEM
• PUSH OFF TABLE
• TF 20 VERTICAL +6 HORIZONTAL BORING HEADS WITH INTEGRATED SAW UNIT
• 3100 CFM DUST EXHAUST REQUIREMENT
