Fanuc RoboDrill aD21LiB5adv 2020

machine specification

• X AXIS TRAVEL
• 27.55"

• Y AXIS TRAVEL
• 15.74"

• Z AXIS TRAVEL
• 15.74"

• TABLE TOP TO SPINDLE END WITHOUT RISER
• 3.15" – 18.89"

• SPINDLE CENTER TO COLUMN GUIDEWAY
• 14.96”

• TABLE SIZE
• 33.46" x 16.14"

• TABLE LOAD CAPACITY
• 880 lbs.

• TABLE SURFACE CONFIGURATION
• 3 T-Slots, spacing 125mm apart

• SPINDLE TYPE
• Cartrige Style Direct Drive

• SPINDLE TAPER
• 7/24 Taper No. BT30

• BEARINGS
• (4) Ceramic Greased Packed

• SPINDLE SPEED
• 200 –24,000 rpm

• ACCELERATION TIME
• (0-24,000 rpm) .7 sec

• SPINDLE MOTOR
• Fanuc AC Spindle Motor

• FULL TORQUE
• 7,000 rpm

• RAPID FEEDRATE (X/Y/Z)
• 2125 in/min

• CUTTING FEEDRATE (X,Y,Z)
• 0.1 - 1181"

• POSITIONING ACCURACY X, Y AXIS
• .0002"/12”

• POSITIONING ACCURACY Z AXIS
• .0002" /12”

• REPEATABILITY [X,Y,Z]
• +/- .000078"

• TOOL HOLDER
• MAS BBT30

• PULL STUD
• MAS P30T-1 (45 Degree)

• NUMBER OF TOOLS
• 21

• MAX TOOL LENGTH
• 9.84”

• TOOL CHANGE TIME
• 0.7 sec .09 sec 1.1 sec

• CHIP TO CHIP
• .07 sec .09 sec 1.1 sec

• POWER CAPACITY
• 15 KVA

• AIR SOURCE
• 71 - 135 PSI

• FLOOR TO TABLE
• 31.6”

• MACHINE HEIGHT
• 110"

• MACHINE SIZE
• 84" w x 79.9" d

• FLOOR AREA
• 102”w x 111” d

• MACHINE WEIGHT
• 5070 lbs.

machine equipped with

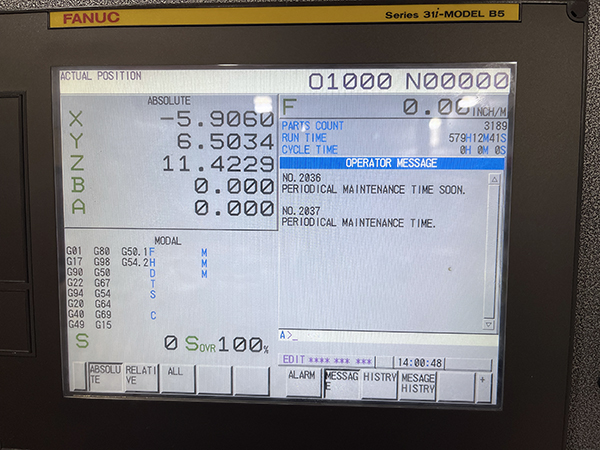

• FANUC 31I-B5 CNC CONTROL
• HIGH PRESSURE COOLANT THRU SPINDLE
• RENISHAW OMP 40 OPTICAL PROBE & TOOL HOLDER
• RENISHAW NC4 LASER TOOL SETTER & BROKEN TOOL DETCTION
• (2) 4TH AXIS DIRECT DRIVE ROTARY TABLES
• 24000 RPM SPINDLE MOTOR
• 200MM COLUMN RISER

machine description

Used Fanuc RoboDrill aD21LiB5adv. This pre-owned Drill and Tap is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Fanuc Drill and Tap we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
