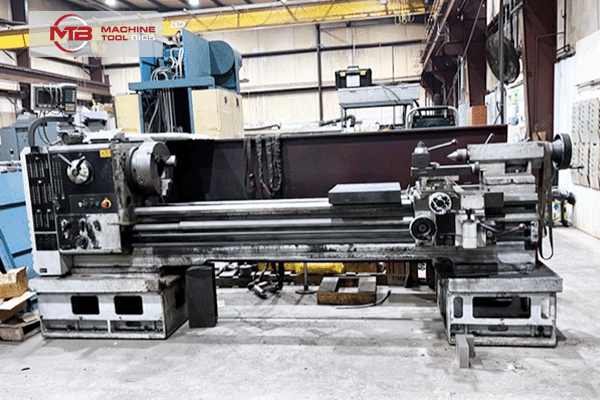

Harrison M550 GH 2001

MACHINE SPECIFICATIONS

• Machine Foot Print :

  (LxWxH) (inch) 180 x 63 x 57*

• Voltage Required:

  230/460Phase3

• Max Swing over Bed:

  21.81"

• Swing over cross slide:

  14.57"

• Swing in Gap:

  32.68"

• DISTANCE BETWEEN CENTERS:

  80"

• Bed Width:

  15.75"

• Spindle Bore:

  3"

• Spindle Nose Camlock:

  D1-11

• Spindle Nose Taper:

  5 MT

• SPINDLE SPEED RANGE:

  RPM 18-1800

• Chuck Size:

  15.5"

• Cross slide travel:

  11.81"

• Cross Slide Width:

  8"

• Compound top slide travel:

  7.5"

• Tailstock Quill Diameter:

  3.74"

• Tailstock Quill Travel:

  5.7"

• Tailstock Quill Taper:

  6 MT

• Longitudinal Feed Range:

  0.0016 – 0.11

• Cross Feed Range (48):

  0.0008 – 0.055

• Number of Inch Pitches:

  73

• Range of inch pitches:

  2 - 84

• Number of Metric Pitches:

  51

• Range of metric pitches:

  0.2 - 14

• Number of Diametral Pitches:

  27

• Range of Diametral Pitches:

  8 - 72

• Number of Module Pitches:

  27

• Range of Module Pitches:

  0.2 – 3.5

• Voltage Required:

  230/460Phase3

• Machine Weight:

  7,942 lbs.
