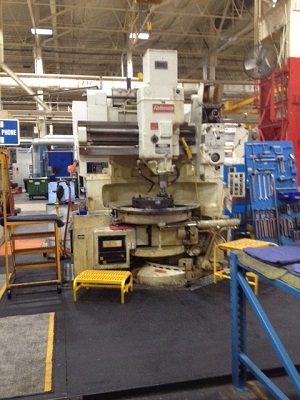

machine specification

• SPINDLE AND WORK SPINDLE FOR INTERNALS
• 13.75"

• MAXIMUM TABLE WEIGHT
• 15,000 lbs.

• MAXIMUM PITCH DIAMETER
• 40" External - 36" Internal

• MAXIMUM OUTSIDE DIAMETER OF FIXTURE
• 40"

• MAX DP SPUR
• 3

• MAXIMUM FACE WIDTH
• 12"

• MAXIMUM PITCH DIAMETER (EXTERNAL)
• 36"

• MAXIMUM PITCH DIAMETER (INTERNAL)
• 36"

• MAXIMUM HELIX ANGLE (W/PROPER GUIDES)
• 45 Degrees

• MAXIMUM DIAMETRAL PITCH SPUR GEARS
• 3 Dp

• MAXIMUM DIAMETRAL PITCH HELICAL GEARS
• 4/5 Dp

• WORK SPINDLE BORE DIAMETER
• 5.875"

• CUTTER SPINDLE TAPER
• #18 Jarno

machine equipped with

• 7 1/2 HP MAIN MOTOR
• STANDARD STRAIGHT SPUR GUIDE
• 5 INCH DIAMETER HEAVY DUTY CUTTER SPINDLE
• DEPTH FEED/NUMBER OF CUTS DIAL CONTROLLED VIA ADJUSTABLE TRIP DOGS
• RAPID ROTATION OF WORK SPINDLE
• PNEUMATIC WORK APRON ASSIST (WORK TABLE SWING-OUT)
• ASSORTED CHANGE GEARS
• ONE CUTTER ADAPTER
• T-SLOTTED WORK SUB-TABLE
• SELF CONTAINED COOLANT SYSTEM PUMP & PIPING
• FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS)
• PRESENTLY ARRANGED FOR 220/440 VOLT 3-PHASE 60HZ
• GUARDS
• COVERS
