Used Xena AH-13032-RT Horizontal Boring Mill

MACHINE SPECIFICATIONS

Table Size:

Max Weight on Table:

17,000 lbs

X-Axis Travel:

126

Y-Axis Travel:

78.7"

Z-Axis Travel:

78.7"

W-Axis Travel:

35.4"

Spindle Diameter:

5.1"

Spindle Nose:

50 Taper

Spindle Speed:

10- 2000 RPM

Spindle Motor:

26 HP

ATC Capacity:

60 Tools

MACHINE EQUIPPED WITH

5th axis installed on table with base

Rotary table with a 3-jaw hydraulic chuck (20 '') with a 6 '' bore

HD rolling center with a 3-jaw hydraulic chuck (16 '')

Hydraulic brakes on both ends

Axis "B" @ 360

000 position

Coolant High pressure through spindle (215 psi)

Spindle cooler

Automatic power off

Hydraulic unit

Coolant system

Automatic lubrication

Alarm light tower

LED full interior lighting

M.P.G. 5 axis

Linear positioning glass scale on the X Y Z axes

Heat exchanger

Chip conveyors

PROBE Renishaw (RTS + RMP60 (Q) + RMI-Q) Automatic tool

length & workpiece probing system

2 heads at 90 degrees: (1) mini 50/30 + (1) STD 50/50 (see photos below)

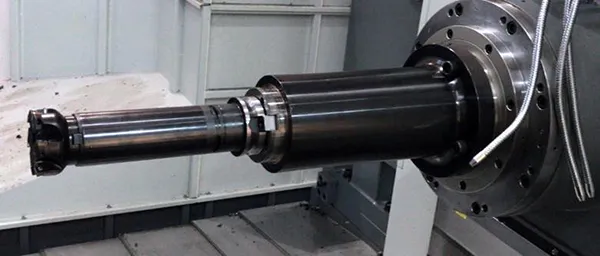

1 straight extension 50/50 (see photos below)

W 400mm extension support

Xena AH-13032-RT 2017

MAKE: Xena

MODEL: AH-13032-RT

YEAR: 2017

TYPE: Horizontal Boring Mill

CONTROL: Fagor 8070

REF #: 3627394
