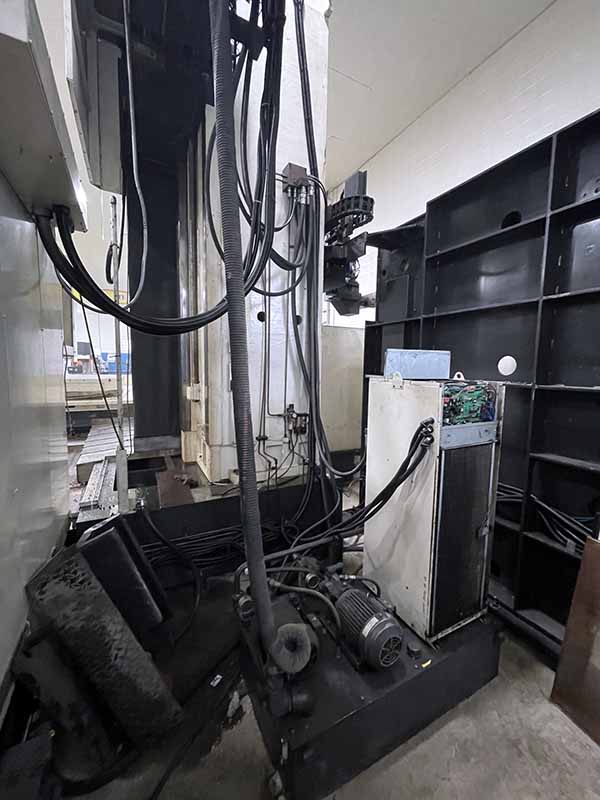

Toshiba BTD-13F.R22 1997

machine specifications

• X-Axis Travel:

  118.11"

• Spindle Capacity:

  5.1"

• Y-Axis Travel:

  90.55"

• Z-Axis Travel:

  62.99" (Table/Column Cross)

• W-Axis Travel:

  27.56" (Spindle Extension)

• B-Axis Indexing:

  0.001°

• Table Size:

  70.86" x 86.61" (T-Slotted)

• Table Load Capacity:

  22,000 Lbs

• Spindle Taper:

  #50

• Spindle Speed:

  2,500 RPM

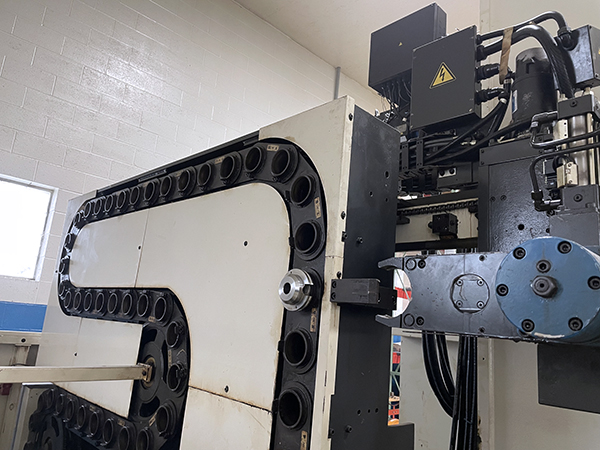

• Tool Changer:

  90 Tool ATC

• Machine height:

  189"

• Floor Space:

  276" x 282"

• Machine Weight:

  81,400 lbs
