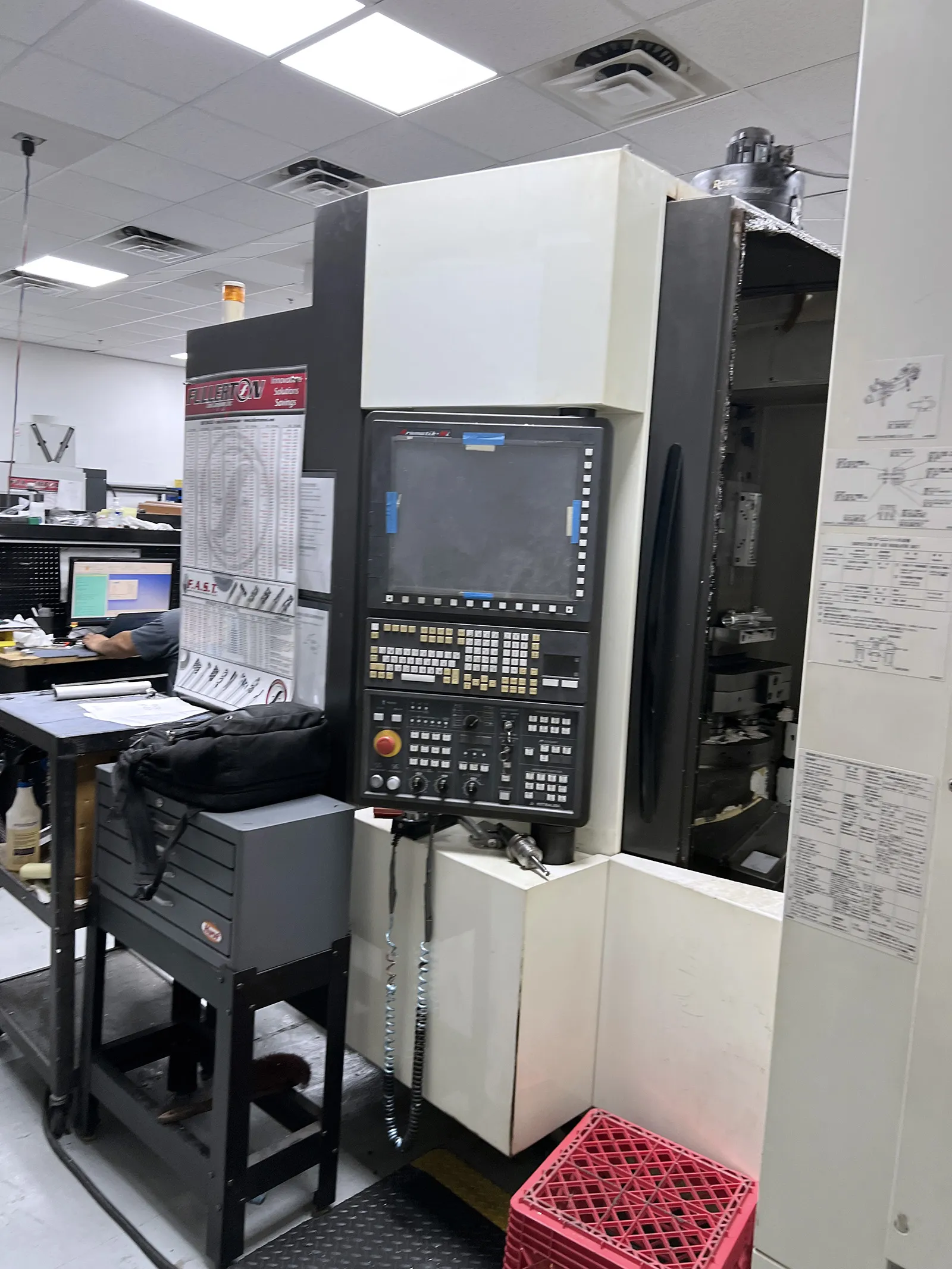

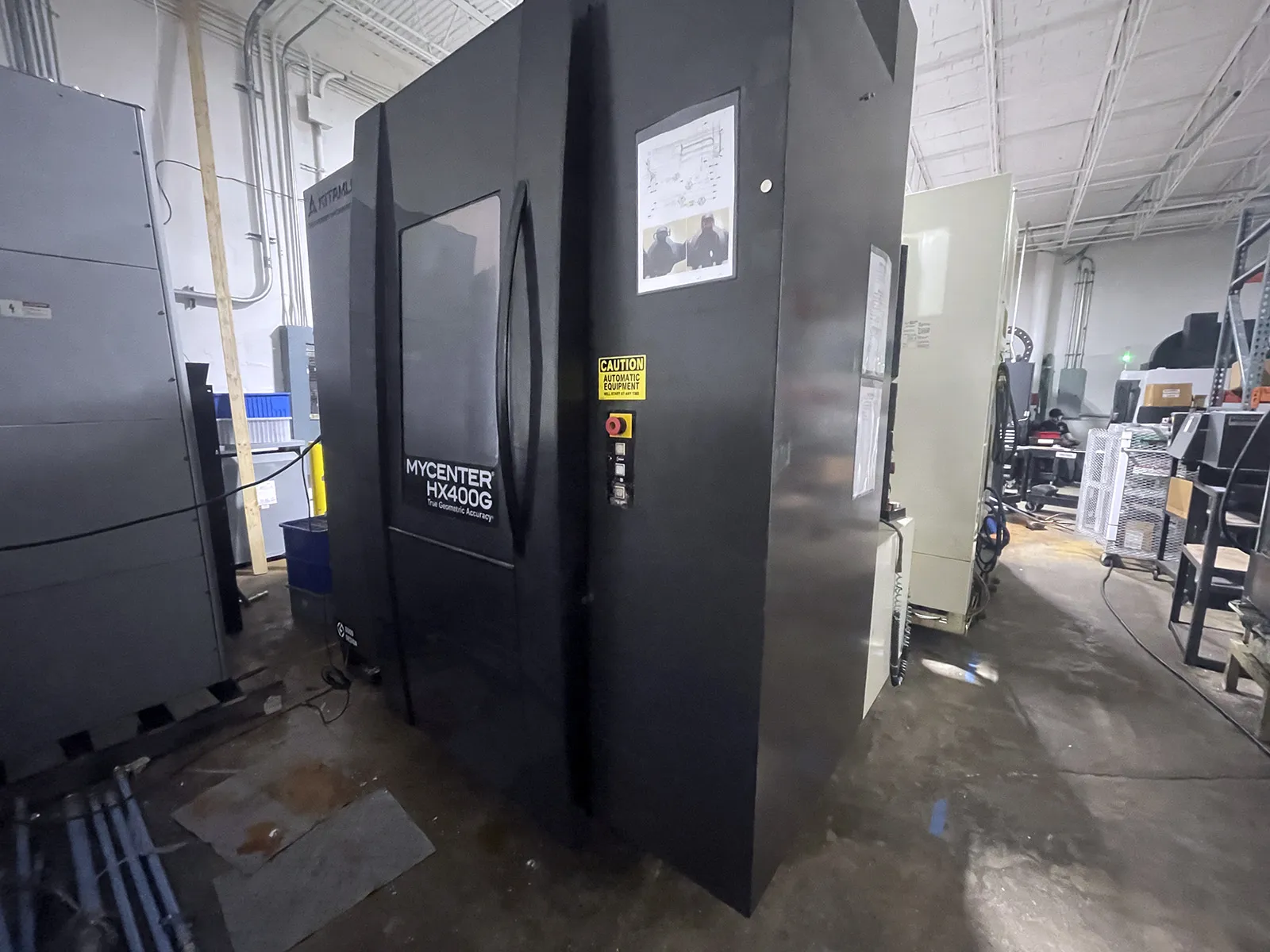

Kitamura HX400G 2016

machine specifications

• Pallet Size (2 Pallets):

  15.75" x 15.75"

• Pallet Indexing:

  0.001 Degrees

• Maximum Load On Pallet:

  880 Lbs

• X-AXIS TRAVEL::

  24"

• Y-Axis Travel:

  24"

• Z-Axis Travel:

  24"

• Rapid Rate Y Axis:

  1969 IPM

• Rapid Rate X Axis:

  1969 IPM

• Rapid Rate Z Axis:

  1969 IPM

• Max Spindle RPM:

  15000 RPM

• Spindle Taper:

  CAT40

• Main Motor (HP):

  20HP

• Tool Changer Positions:

  100

• Dimensions:

  120" x 160" x 108" H

• Weight:

  21560 Lbs
