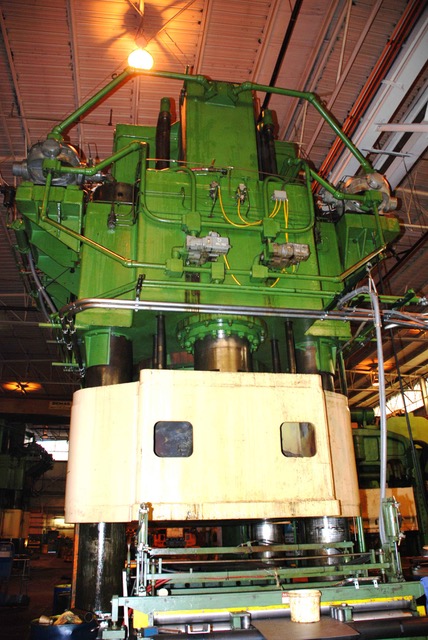

Bliss MS-5000

machine specification

• CAPACITY
• 5000 Tons

• SLIDE AREA
• 84" RL x 204" FB

• STROKE
• 16"

• BED AREA
• 84" RL x 204" FB

• BED OPENING
• 48" RL x 48" FB

• DIE SPACE
• 63" (On Bed, S.D.A.U.)

• ADVANCE SPEED
• 400 IPM

• PRESSING SPEED
• 19 IPM

• MOTOR POWER
• 150 HP

• MOTOR SPEED
• 900 RPM

• 4-POST COLUMNS
• 22" Dia. Ea

• BOLSTER
• 72,000 Lbs.

• BED
• 160,000 Lbs.

• SLIDE
• 120,000 Lbs.

• CROWN
• 140,000 Lbs.

machine equipped with

• MOVING BOLSTER F/B
• 4 ROD GUIDED DESIGN
• MOVING BOLSTER F/B
• TWO (2) AUXILIARY CYLINDER ASSEMBLY: 38000 LBS. (19000 X 2)
• FOUR (4) PULL BACK CYLINDER ASSEMBLY: 8000 LBS. (2000 X 4)
• THREE (3) PUMP AND MOTOR ASSEMBLY: 26400 LBS. (8800 X3)
