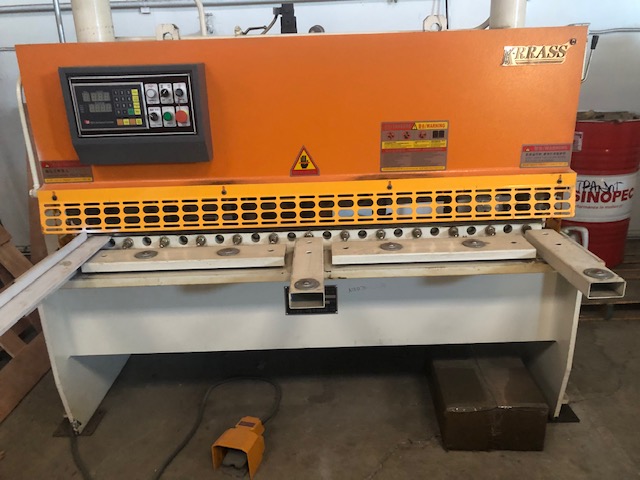

Krrass QC11K-6X1600 2015

machine specification

• CAPACITY
• 5

• MAX. CUTTING THICKNESS
• 0.2362"

• MAX CUTTING WIDTH
• 63"

• PLATE STRENGTH
• 450 MPa

• ANGLE-CUTTING RANGE
• 1.5

• MAX. DISTANCE OF BACKGAUGE
• 19.685"

• CUTTING SPEED
• (1/min) - 22 / No-load (1/min) - 24

• WORKTABLE HEIGHT ABOVE GROUND
• 29.5276"

• MAIN MOTOR POWER
• 4KW

machine equipped with

• FRONT OPERATED POWER BACK GAUGE
• SIDE SQUARING ARM
• 2 FRONT SUPPORT ARMS
• ELECTRIC FOOT SWITCH FOR OPERATION
• BALL TRANSFERS IN TABLE
• HYDRAULIC SYSTEM AND TANK
