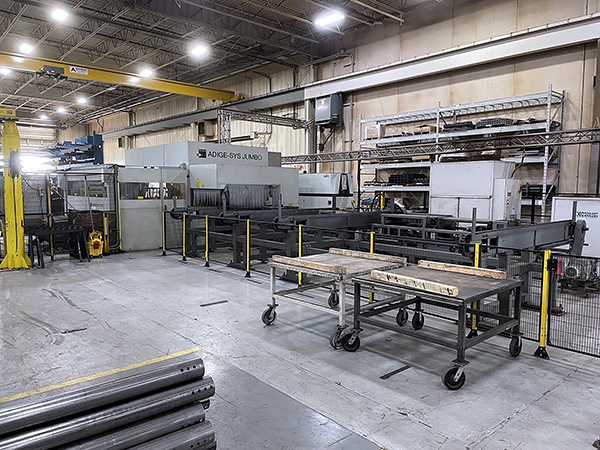

Used BLM LT Jumbo 14 Laser Cutting Machine

MACHINE SPECIFICATIONS

Laser Power:

3.5 KW

Laser head travel from left to right (X-axis):

78.74"

Laser head vertical travel (Y-axis):

27.56"

Laser head ram feed (Z-axis):

27.56"

Laser head oscillation (B-axis):

-45 Degrees - -135 Degrees

Laser head rotation (C-axis)::

+-45 Degrees

Tube rotation (A-axis):

N*360 Degrees

Pass Line::

60.63"

Vertical stroke of inlet roller bed (V-axis):

11.02"

Vertical stroke of outlet roller bed (W-axis):

11.02"

Transversal movement of the piercing unit (X40-axis):

11.81"

Vertical movement of the piercing unit (Y40-axis):

23.03"

Piercing unit spindle advancement (Z40-axis):

40.16"

Piercing spindle rotation (SP40-axis):

N*360 Degrees

Load bed minimum bar length:

177.16"

Load bed maximum bar length:

492.13"

Load bed maximum bar weight capacity:

68.52lbs/ft

Unload bed minimum length:

118.11"

Unload bed maximum length:

334.65"

Short part evacuator minimum length:

3.94"

Short part evacuator maximum length:

118.11"

Bar dimensions, maximum thickness:

0.63"

Round section diameter:

1.18" - 13.98"

Square section - inch:

1.18" x 1.18" - 10.24 " x 10.24 "

Rectangular section - inch:

1.18" x 1.18" - 11.81" x 7.87"

C section (channel) - inch:

3.15" x 3.15" - 10.24" x 10.24"

L section (angle) - inch:

3.15" x 3.15": - 10.24" x 10.24"

HE section (H-beam):

5.51" - 10.24"

IPE section (I-beam):

3.15" - 11.81"

Voltage:

480

Phase:

MACHINE EQUIPPED WITH

Load bed with alignment & singling devises and load transfers

Inlet roller bed

Air Bed

Enclosure

5-axis Laser (double rotary head & focusing head)

Rofin Sinar DC 35 laser source

Scrap evacuator

Short part evacuator

Piercing/threading unit

ADILUBE tool lubrication system

Outlet roller bed

Unload bed

Double Siemens Sinumerik 840D CNC control (Windows XP platform)

Fume extractor

Cooling units

Manuals

BLM LT Jumbo 14 2014

MAKE: BLM

MODEL: LT Jumbo 14

YEAR: 2014

TYPE: Fiber Laser

CONTROL: Siemens 840D

REF #: 3648401
