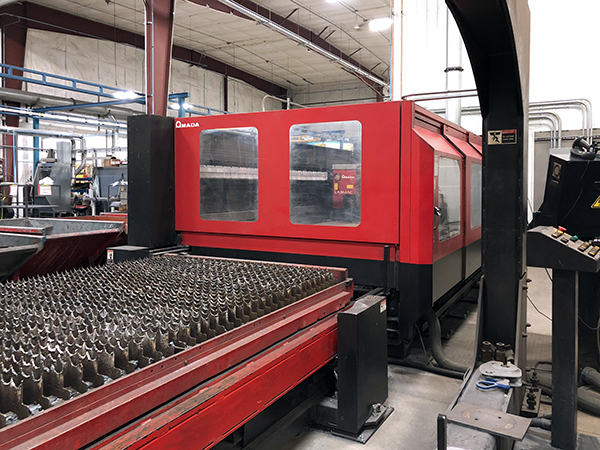

Amada FO3015 NT 2007

MACHINE SPECIFICATIONS

• Tool Changer Type:

  60 ATC

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• X - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• X-Axis Carriage Travel:

  134.64"

• Y-Axis Laser Head Travel:

  61"

• Z-Axis Laser Head Travel:

  7.8"

• Maximum Sheet Size:

  61" X 120"

• Laser Design:

  Flying Optic

• Cutting Feed Rate:

  1181 IPM

• Max Positioning Speed (Simultaneous X&Y-Axes):

  3,150 Ipm

• Max Positioning Speed:

  2,362 (Z-Axis)

• Material Cap. Mild Steel:

  .75”

• Material Cap. tainless Steel:

  50"

• Material Cap. Aluminum:

  .25”

• Total on hours:

  57,100

• Turbo blower and vacuum pump replaced at:

  50,334 Hrs.

• Turbo blower oil change and vacuum pump oil:

  12-17-18

• Tubes replaced at:

  3-27-18

• Optics replaced at:

  50,926

• Rear mirror replaced:

  8-1-18
