HSG G3015/60T 2018

Sold Image

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

  • MAKE: HSG

  • MODEL: G3015/60T

  • YEAR: 2018

  • TYPE: Laser Cutting Machine

  • CONTROL: Cypcut

  • REF #: 3600074

MACHINE SPECIFICATIONS

  • Table Size:

    5ft x 10 ft

  • Max Speed:

    140m/min

  • Acceleration:

    1.2G

  • X/Y axis positioning accuracy:

    ±0.05mm/m

  • X/Y axis repeat positioning accuracy:

    ±0.05mm

  • Max loading weight in table:

    1800 lbs

  • Round Tube:

    .8" - 8.5"

  • Square Tube:

    .8" - 6"

  • Rectangular Tube:

    .8" - 6"

  • Maximum Tube Support Weight :

    220lbs

MACHINE EQUIPPED WITH

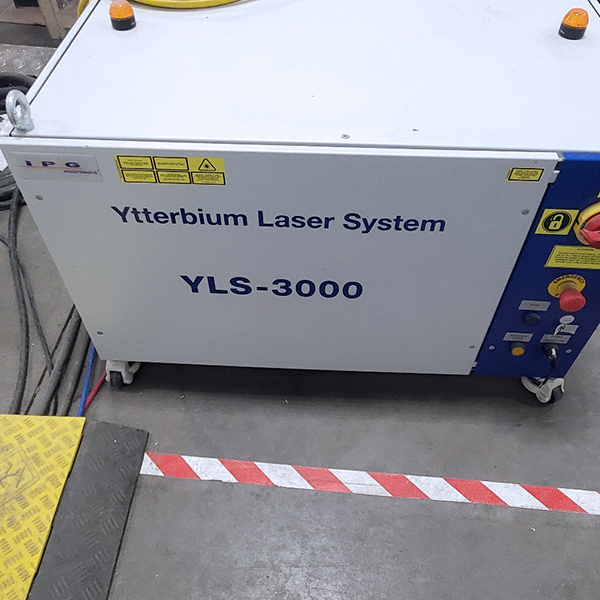

  • 3kw IPG YLS Fiber Oscillator
  • WSX Auto Focus Laser Head
  • Chiller
  • Dust Collector
  • High Precision rack and Pinion Alpha/GUDEL
  • Speed Reducer(Incl. gear) Alpha
  • High Speed Servo Motor and Driver SANYO DENKI
  • Precision linear guide (machine tool) HIWIN/PMI
  • Precision Ball Screw (Z-Axis)HIWIN/TBI
  • Rack & Pinion and Sanyo/Panasonic servo motor
  • CNC control system FScut
  • Electrical control Schneider
  • Machine power supply: AC380V 60HZ 3 Phase
