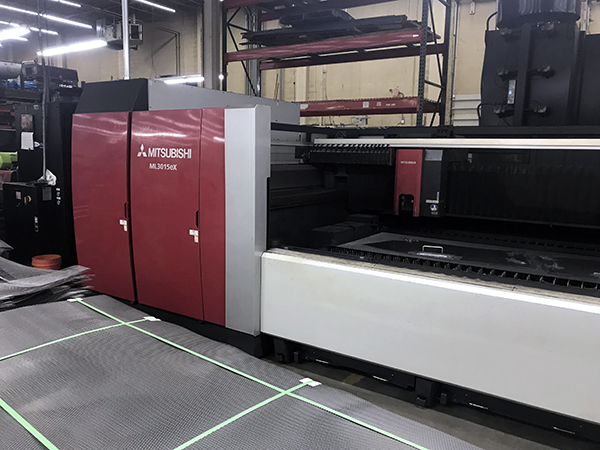

Mitsubishi ML3015eX Plus 45CF-R 2014

MACHINE SPECIFICATIONS

• X - Axis Travel (inches):

  122"

• Y - Axis Travel (inches):

  61"

• Z - Axis Travel (inches):

  5.9"

• Resonator ( Type ):

  45CF-R (4,500 Watt)

• Number of Axis:

  3

• Workpiece:

  W 120.1” x D 60.0”

• Motion Drive Syst:

  Helical Rack & Pinion

• Proc. Lens Focal Dist.:

  5.0”/7.5”/10.0"

• Table Pass Height:

  34.6"

• Rapid Travel Speed [X,Y]:

  3940” Single Axis

• Rapid Travel Speed [X,Y]:

  5550 Simultaneous

• Max. Proc. Feedrate:

  1970”

• Pos. Precision X/Y:

  0.0019”/20”

• Pos. Precision Z:

  0.0039”/4”

• Rep. Accuracy [X,Y]:

  +/-0.00039”

• Max. Workpiece Weight:

  2050 Lbs

• Foot Print:

  566.9” x 344.4”
