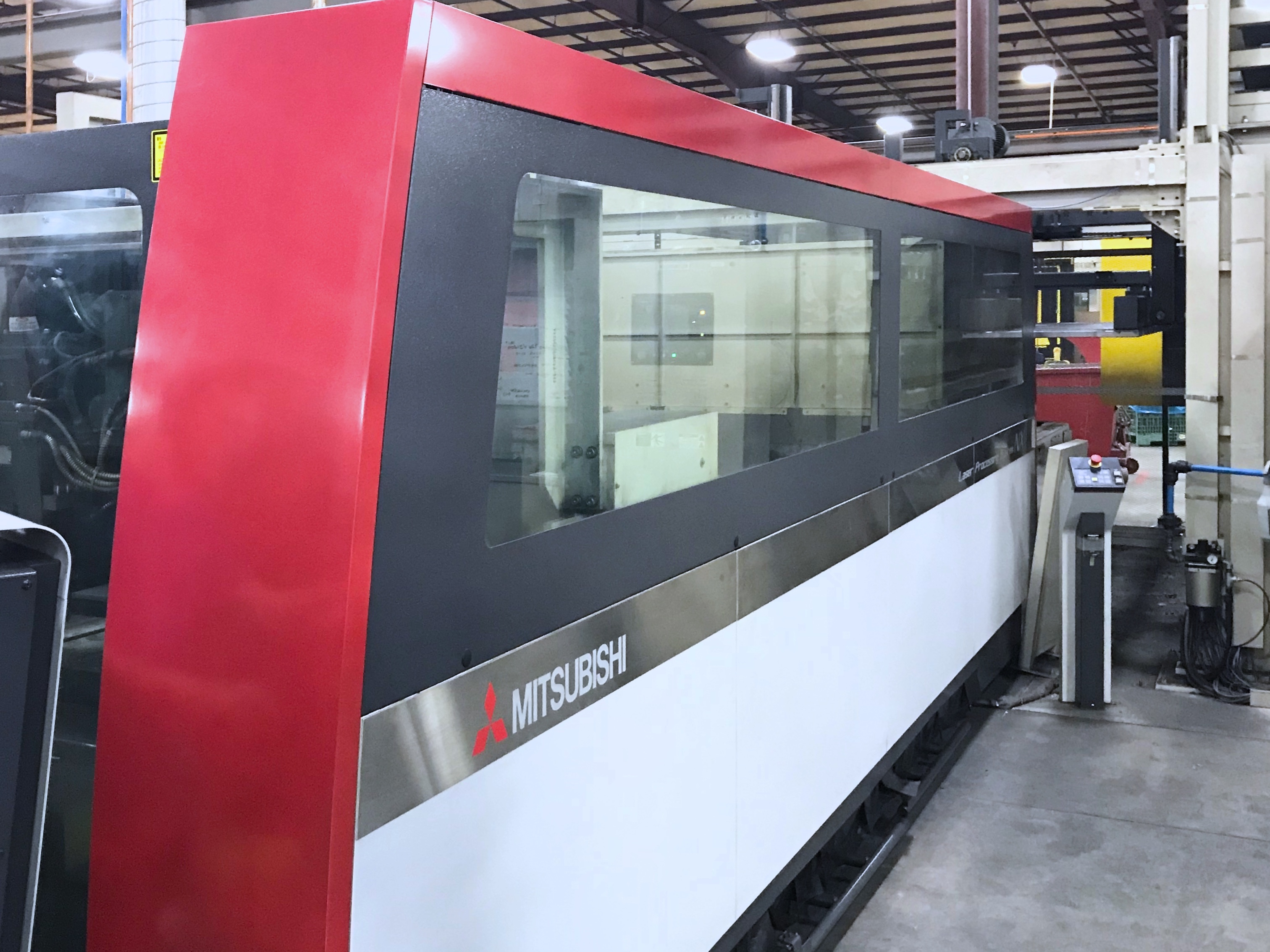

Mitsubishi i ML 3015 NX 60XF 2011

MACHINE SPECIFICATIONS

• Pallet Changer:

  Provided

• Drive Motor Type:

  Intelligent AC Servo

• Max Work Piece Weight:

  2,050 lb.

• Pos. Precision X/Y:

  .0019/20” , .0039/4

• Repeatability:

  ±0.0015 mm

• Installation Dims W x D:

  491.3” x 346.9”

• Travel Drive Method:

  X-Y-Z Simultaneous 3 axes

• Machine Structure:

  X-Y Precision Rack & Pinion, Direct Drive – Z Precision Linear Drive

• X - Axis Travel (inches):

  125.9"

• Y - Axis Travel (inches):

  52.9"

• Z - Axis Travel (inches):

  4.7"

• Max. Processing Feed rate:

  2360”/min.
