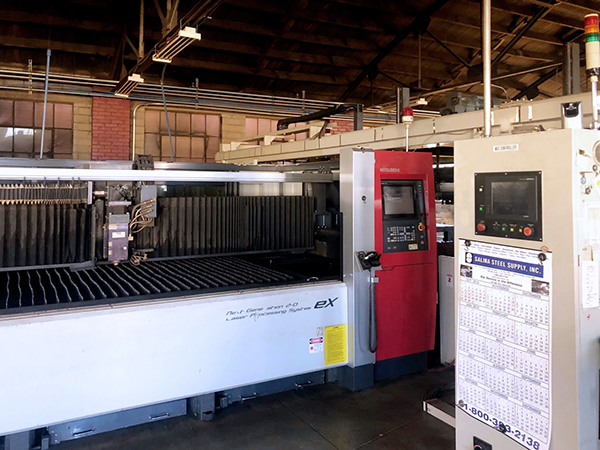

Mitsubishi ML3015eX Plus 45CF-R 2012

Sold Image

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

MACHINE SPECIFICATIONS

  • Bar Stock Capacity:

    2.0"

  • Vertical Travel of Ram:

    4444

  • V-Axis Travel:

    5555

  • Turret Capacity:

    8 Positions

  • Tool Changer Type:

    60 ATC

  • Throat Depth:

    9.45"

  • Table Size - W:

    30"

  • Table Size - L:

    61"

  • Pallet Size (inches):

    25"

  • Wire Diameter (inches):

    3333

  • Max Swing (inches):

    17.32"

  • Spindle Speed:

    12,000 RPM

  • Spindle Taper (CAT/BT):

    HSK-463

  • Z - Axis Travel (inches):

    14.7" / 375mm

  • Y - Axis Travel (inches):

    15.7" / 400mm

  • X - Axis Travel (inches):

    15.7" / 400mm

  • Chuck Size (Inches):

    8"

  • Wire Traveling Speed:

    22

  • Resonator ( Type ):

    55

  • X-Axis Travel:

    14.3"

  • Y-Axis Travel:

    27.6"

  • Z-Axis Travel:

    43.5"

  • Resonators:

    45CF-R (4,500 Watt)

  • Motion Drive System:

    Helical Rack & Pinion

  • Proc. Lens Focal Dist.:

    5.0”/7.5”/10.0”

  • No. of control axes:

    3

  • Table Pass Height:

    34.6”

  • Rapid travel speed (X, Y):

    5550 Simultaneous

  • Rapid Travel Speed [X,Y]:

    3940” Single Axis

  • Pos. Precision X/Y:

    0.0019”/20”

  • Pos. Precision Z:

    0.0039”/4”

  • Rep. Accuracy [X,Y]:

    +/-0.00039”

  • Max Processing Feedrate:

    1970

  • Foot Print:

    566.9” x 344.4”

MACHINE EQUIPPED WITH

  • Mitsubishi MSC3 – EL4 Material Handling System
  • Self contained PC NC
  • 64-bit CPU
  • 15" TFT color LCD touch screen
  • 5” & 7.5” Cutting Heads Magnetic Head
  • 20.0 GB Hard Disk
  • Encoder Position detection system
  • USB
  • Computer Link
  • Eternet LAN
  • Intelligent AC Servo Drive Motor
  • X-Y Helical Rack & Pinion
  • Z Precision Ball Screw
  • Power Operated Door
  • Pallet Changer Chiller
