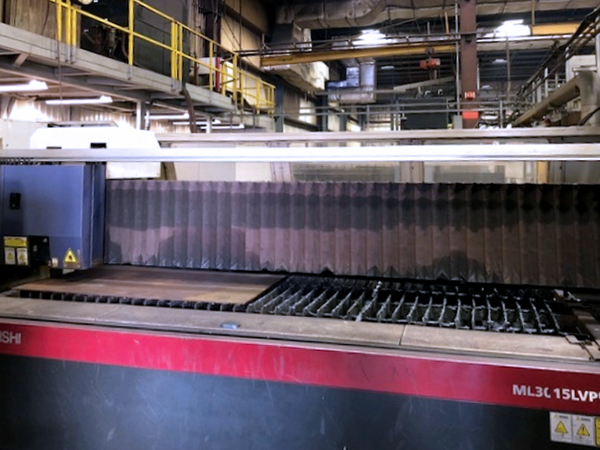

Mitsubishi ML3015LVP(S) 45CF-R 2011

machine specifications

• V-Axis Travel:

  5555

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• X-Axis Stroke:

  62.9" (Table)

• Y-Axis Stroke:

  55.11" ( Spindle Head)

• Z-Axis Stroke:

  45.27" (Column)

• Max Power:

  4500 Watts

• Rapid Travel Speed:

  4,730 IPM (Simultaneous)

• Single Axis:

  3345 IPM

• Max Feed Rate:

  1,180 IPM

• Travel Drive Method:

  X,Y, Z sim. 3 axis control

• Motion System:

  Precision rack & pinion, direct drive

• Max Sheet Size:

  60.04" x 120.08”

• Drive Motor Type:

  4,730 IPM
