machine specification

• RESONATOR
• Mitsubishi 40CFX

• SHEET SIZE - W
• 72"

• SHEET SIZE - L
• 144"

• X - AXIS TRAVEL (INCHES)
• 144.05

• Y - AXIS TRAVEL (INCHES)
• 72.02

• Z - AXIS TRAVEL (INCHES)
• 3.53

• MAX WORK PIECE WEIGHT
• 2050 LBS

• MAX FEED RATE
• 1180 IPM

• RAPID TRAVEL SPEED
• 4730 IPM (Sim)

• PALLET CHANGE TIME
• 25 Sec

• PALLET CHANGER DRIVE MECHANISM
• Chain

machine equipped with

• MITSUBISHI LC20B P2 CNC CONTROL
• MITSUBISHI 40CFX RESONATOR
• NON-CONTACT CUTTING HEAD
• DUAL PALLETS
• HIGH SPEED PIERCE OPTION
• CHILLER

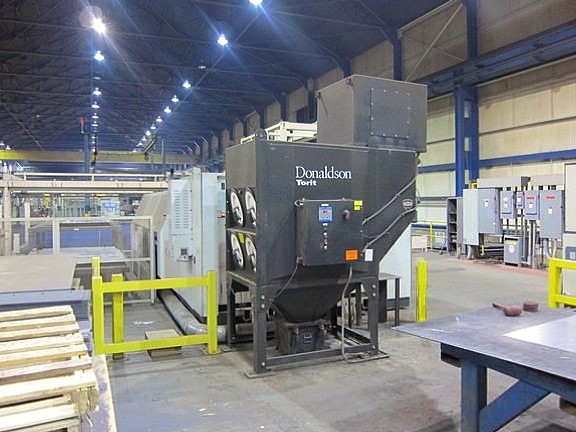

• DUST COLLECTOR

machine description

Also Available:

MSCIII 3718 (8) shelf material storage cell, 6000 lb. Shelf capacity automated material loading and finished parts unloading cell.
