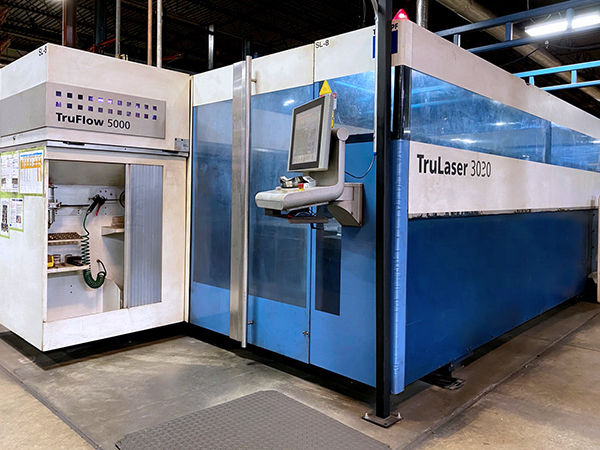

Trumpf Trulaser 3030 2009

machine specification

• X-AXIS TRAVEL
• 120"

• Y-AXIS TRAVEL
• 60"

• Z-AXIS TRAVEL
• 4.5"

• CONTROL
• Siemens 840D CNC

• MAX. AXIAL SPEEDS (SIMULTANEOUS)
• 11,811 IPM

• MAX WORKPIECE WEIGHT
• 1,980 Lbs.

• MAX SHEET SIZE
• 5’ x 10’

• LASER OUTPUT
• 5000 Watts

• RESONATOR
• Trumpf TruFlow 5000

• MAX. AXIAL SPEEDS (AXIS PARALLEL)
• 7,880 IPM

• POWER CONSTANCY AT RATED LASER OUTPUT
• ± 2 %

• CONTINUOUSLY ADJ. POWER RANGE
• 300 W - 5000 W

• BEAM QUALITY, STANDARD (K / M²)
• 0.55 / 1,82

machine equipped with

• SIEMENS 840D CNC CONTROL
• TRUFLOW 5000 WATT LASER RESONATOR
• LINEAR DRIVE SYSTEM
• AUTOMATIC PALLET CHANGER
• SCRAP CONVEYOR
• PROGRAMMABLE CUTTING GAS PRESSURE
• HIGH SPEED CUTTING HEAD CUTTING HEAD QUICK-CHANGE DEVICE
• DUST COLLECTOR
• CHILLER UNIT
