McKay 66" x 5/8" x 100,000 lbs 1970

machine specification

• MATERIAL
• Hot Rolled Steel at 60,000 PSI Shear Strength

• MAX UNTRIMMED WIDTH
• 66"

• MAX TRIMMED WIDTH
• 64"

• THICKNESS
• 0.065" - 0.625"

• ENTRY COIL SIZE
• 24" ID x 90" OD

• EXIT COIL SIZE
• 30" ID x 90" OD

• MAX COIL WEIGHT
• 100,000 lbs

• LOW LINE SPEED
• 30 - 150 fpm

• HIGH LINE SPEED
• 90 - 450 fpm

• FLATTENER DRIVE
• 200 hp

• SLITTER DRIVE
• 250 hp

• RECOILER DRIVE
• 250 hp

• SCRAP CHOPPER #1 DRIVE
• 100 hp

• SCRAP CHOPPER #2 DRIVE
• 100 hp

• SLITTING CAPACITY AT 150 FPM
• 5 cuts in 0.500 material

• SLITTING CAPACITY AT 150 FPM
• 7 cuts in 0.375 material

• SLITTING CAPACITY AT 150 FPM
• 8 cuts in 0.312 material

• SLITTING CAPACITY AT 150 FPM
• 10 cuts in 0.250 material

• SLITTING CAPACITY AT 450 FPM
• 10 cuts in 0.187 - 0.065 material

machine equipped with

• DRAWINGS AND MANUALS
• SLITTER ARBOR TOOLING
• EDGE GUIDE SYSTEM
• UPGRADED HYDRAULICS IN 2006
• UPGRADED DRIVE AND CONTROL SYSTEM IN 2006
• SPARE PARTS FOR SCRAP CHOPPER
• SLITTER HEAD
• AND RECOILER

machine description

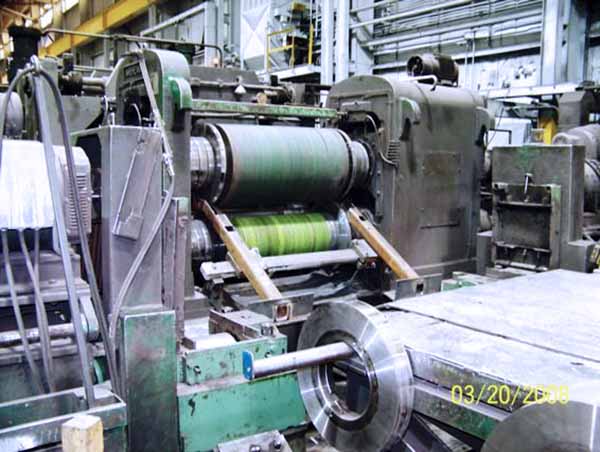

Used 1970 McKay 66" x 5/8" x 100,000 lbs for sale. This pre-owned McKay Slitting Line is located in the USA. This Slitting Line is available for a limited time, call us today for a quote. If you have any questions about our McKay 66" x 5/8" x 100,000 lbs listing, contact us and we will be happy to help.
