machine specification

• UNCOILER EXPANSION RANGE
• 20" - 24"

• FACE MANDREL
• 20"

• SLITTER HEAD FACE ARBORS
• 5.5" Dia x 21.5"

• ENTRY PINCH ROLLS
• 6" Diameter

• AC MOTOR
• 40 HP / 440V

• SPEED
• 1770 RPM

• GEAR REDUCER
• 11.4.1 Ratio

• PASSLINE HEIGHT
• 61"

• HYDRAULIC CYLINDER OPERATED EXIT CROP SHEAR
• 20"L

• TENSION STAND PIT TABLE
• 9' L

• PASSLINE HEIGHT
• 61"

• RECOILER FACE DRUM
• 16" Dia. x 21.5"

• FACE DRUM PADS
• 20" and 24" Dia. bolt

• AC MOTOR
• 50 hp / 460V

• SPEED
• 1765 rpm

• PASSLINE HEIGHT
• 53"

• LINE DIRECTION
• Right to Left

machine equipped with

• UNCOILER:
• HYDRAULIC EXPANSION
• (4) SEGMENT MANDREL
• HOLDDOWN ARM
• AIR OPERATED DISC BREAK
• SLITTER HEAD:
• ENTRY SIDE GUIDES
• SCRAP WINDER:
• HYDRAULIC MOTOR DRIVE
• OSCILLATE WIND
• TENSION STAND:
• DRAG WIPE DESIGN
• ENTRY LEVEL PASSLINE ROLL
• EXIT SEPARATOR TOOLING BAR
• EXIT THREADING TABLE TO RECOILER
• RECOILER:
• MANUAL CLAMP AND EXPANSION
• HYDRAULIC PUSHOFF
• 3 PHASE INVERTER DUTY AC INDUCTION MOTOR
• HORTON AIR HOLDING BREAK
• (2) ARM TURNSTILE WITH MANUAL ROTATION
• FREE STANDING OVERARM SEPARATOR
• *NO ELECTRIC CONTROL
• NO HYDRAULICS
• NO TOOLING*

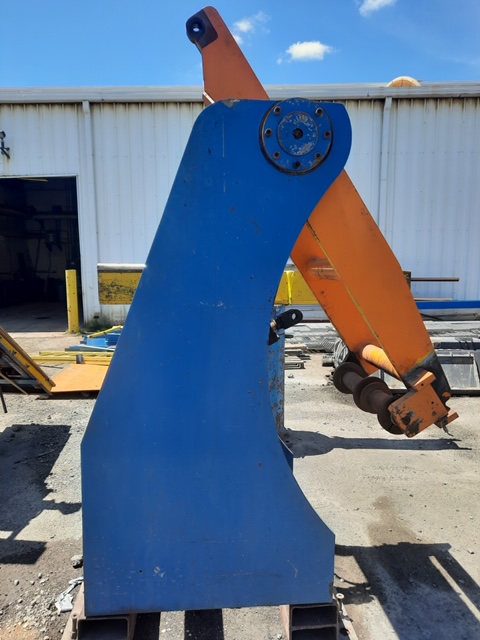

• *MACHINE STORED INSIDE MOVED OUTSIDE FOR PHOTOS ONLY*

machine description

This Pro-Eco 18" x 5.5" x 20,000 Slitting Line features a slitter head, a scrap winder, a tension stand, a recoiler with overarm separator, and a two-arm turnstile. For more information please call us at 312.226.4150.
