machine specification

• TAPPING CAPACITY IN FREE MACHINING STEEL
• 10 M

• STANDARD PART LENGTH WITH A ROTATING GUIDE BUSHING MM
• 220 mm

• SPINDLE STOP/ START TIME FROM 0 TO 10 000 RPM
• 0,9 sec

• MAIN SPINDLE BAR CAPACITY
• 25.4"

• MAIN SPINDLE SPEED
• 10,000 RPM

• MAIN SPINDLE OUTPUT
• 9,5 (11) kW

• DRILLING CAPABILITY IN FREE MACHINING STEEL
• 10 mm

• NUMBER OF POSITIONS FOR ROTATING TOOLS
• 8

• MAX RPM OF THE ROTATING TOOLS
• 6,000 RPM

• NUMBER OF TOOL POSITIONS IN MAIN OPERATIONS
• 18

• OUTPUT OF THE ROTATING TOOLS
• 1 kW

• CROSS SECTION OF THE TURNING TOOLS
• 12 x 12 mm or ½ x ½

• DRILLING CAPACITITY IN FREE MACHINING STEEL
• 8 mm

• NUMBER OF POSITIONS FOR ROTATING TOOLS
• 8

• OUTPUT OF THE ROTATING TOOLS
• 1 KW

• DRILLING CAPACITITY IN FREE MACHINING STEEL
• 8 mm

• COUNTER SPINDLE MAXIMUM BAR CAPACITY
• 23 mm (25,4)

• COUNTER SPINDLE MAX SPINDLE SPEED
• 10,000 RPM

• SPINDLE OUTPUT FOR COUNTER SPINDLE
• 9,5 kW (11)

• MAX CONSTANT TORQUE
• 17 Nm

• COUNTER SPINDLE DRILLING CAPACITY IN FREE MACHINING STEEL
• 10 mm

• MAXIMUM NUMBER OF TOOLS
• 37

• BREAKDOWN OF TOOLS BETWEEN MAIN AND COUNTER OPERATIONS
• 20 / 17

• CONTROL
• Fanuc 31i-B

• RESOLUTION OF THE AXES
• 0,1 µm

• CONTROLLABLE AXES
• X1, Z1, Y1, X2, Y2, C1, X4 (XB), Z4, C4

• LEAST INPUT INCREMENT
• 0,0001 mm

• INTERPOLATION METHOD
• Linear / circular

• RAPID TRAVERSE RATE
• 35 m / min Y1, Y2; 30 m / min Z1, X4, Z4; 20 m / min X1, X2

• CUTTING FEED RATE
• 1 to 6,000 mm / min

• FEED RATE OVERRIDE
• 0 to 150%, 10% step

• NO. OF TOOL OFFSETS
• 100 LCD/MDI 10,4“ Color LCD

• PART PROGRAM STORAGE SIZE
• 1 Mb

• COOLANT TANK CAPACITY
• 220 l (+80)

• POWER OF THE COOLANT PUMP
• 1000 W

• MAX OUTPUT OF THE COOLANT PUMP
• 80 l / min

machine equipped with

• 7-LINEAR AXIS + (2) C-AXIS
• 2- INDEPENDENT TOOL SYSTEMS
• 36-TOOL POSITIONS
• 16-POSITIONS FOR ROTATING TOOLS
• LNS MODEL ALPHA 320 AUTOMATIC BAR LOADER
• FANUC SERIES 31I-B CNC CONTROL
• ROTATING GUIDE BUSHING
• S1 MOTORISATION FOR ROTATING TOOLS ON THE FRONT TOOL PLATEN
• S2 MOTORISATION FOR ROTATING TOOLS ON THE REAR TOOL PLATEN
• S4 MOTORISATION FOR THE ROTATING TOOLS IN COUNTER OPERATIONS
• AXES C1 + C4
• PNEUMATIC PART EJECTOR + CLEANING OF THE COUNTER SPINDLE COLLET WITH COOLANT
• CENTRAL LUBRICATION SYSTEM
• 3 COLORS LIGHT TOWER
• COOLANT PUMP WITH SELF CLEANING FILTER
• HIGH PRESSURE PUMP
• 20 BARS – 20 L / MIN
• TIMER TO PRE-HEAT THE COOLANT

machine description

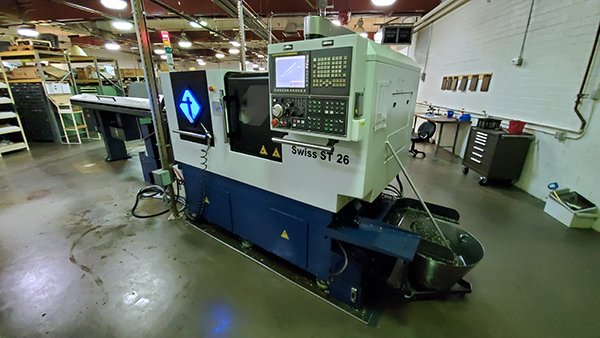

This Tornos Swiss Lathe features 7 Linear Axis + (2) C-Axis, 2 independent tool systems, and 36 tool positions. This CNC Machine comes with 8 positions for rotating tools, a 6,000 RPM rotating tool speed, a 10,000 RPM Spindle Speed, and Fanuc Series 31iB Controls. This CNC Machine was new in 2013. For more information please call us at 312.226.4150.
