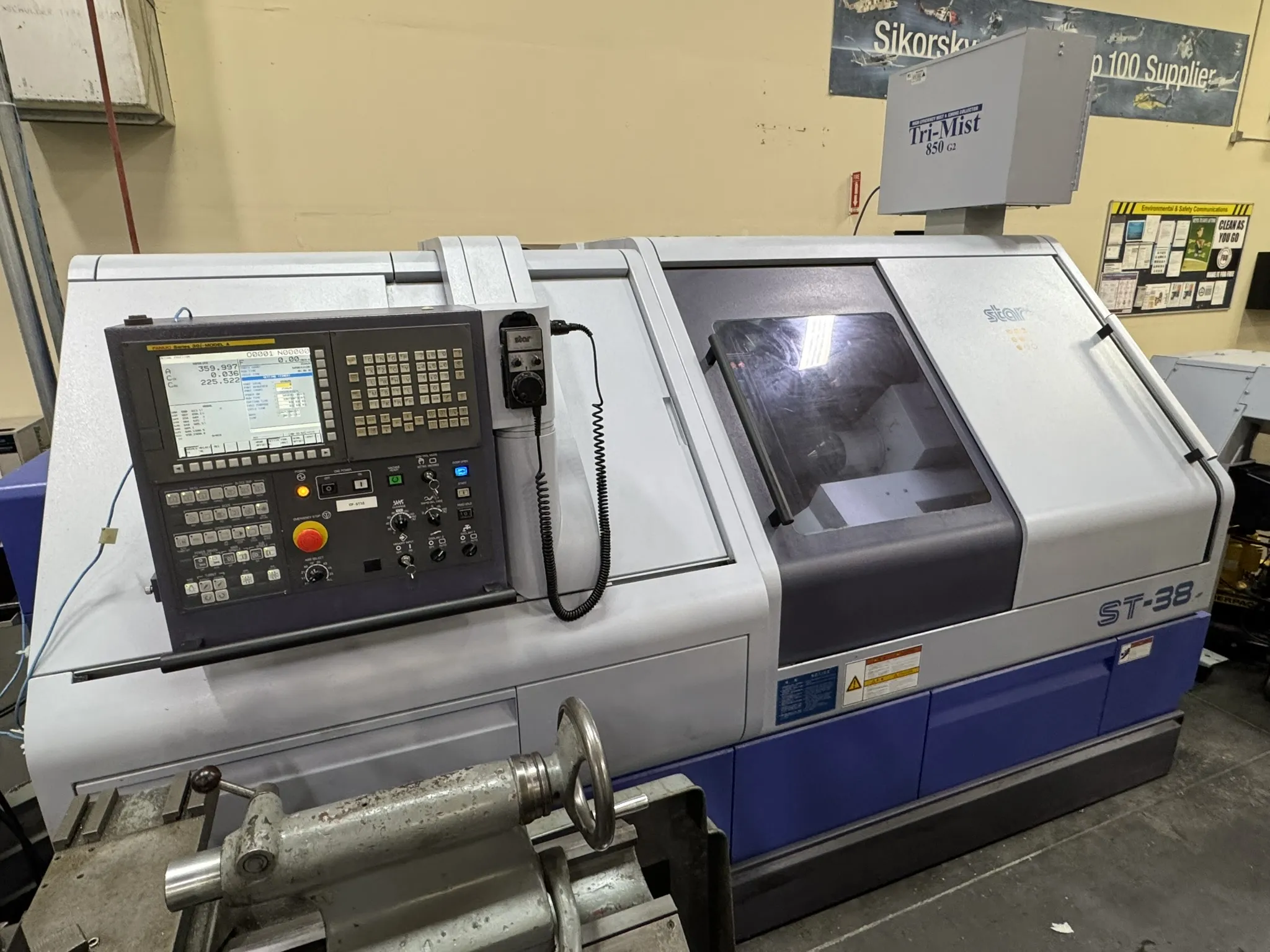

Star ST-38 2015

machine specifications

• Max Machining Diameter:

  (1-1/2")

• Max Headstock Stroke w/ Guide Bushing:

  (13-25/32")

• Front Side Turret:

  10 Stations

• Max. number of turning tools:

  2 Tools

• Sleeve Holder Max Depth Of Hole Capability:

  4.72"

• Sleeve Holder Max. Drilling Capability:

  (29/32")

• Sleeve Holder Number Of Tools:

  3 Tools

• Backworking Attachment Number Of Turning Tools:

  2 tools

• Backworking Turret Tool Post:

  10 Station

• Backworking Attachment Max. Parts Projection Length:

  (2-15/16")

• Backworking Attachment Max. Part Pick-Up Length:

  (5-7/8")

• Max. Chucking Diameter:

  (1-1/2")

• Dimensions:

  108" x 52" x 84"

• Weight:

  9400lbs

• Power-Driven Att. Spindle Speed Max:

  5.700min

• Power Driven Att. Number Of Tools:

  2 tools

• Back Side Turret:

  10 Stations

• Main Spindle Speed:

  Max 7.000min

• Spindle Motor:

  15HP

• Subspindle Speed/Subspd. Travel:

  Max. 7,000 Rpm
