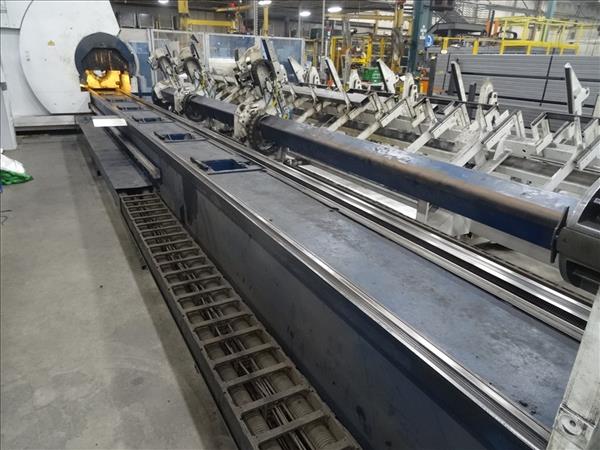

Trumpf TruLaser Tube 7000 2011

machine specification

• LASER POWER
• 3600 Watts

• X-AXIS TRAVEL
• 256"

• Y-AXIS TRAVEL
• 12.6"

• Z-AXIS TRAVEL
• 9"

• MAX MATERIAL THICKNESS
• 0.3"

• X-AXIS TRAVEL SPEED
• 3,937 IPM

• Y-AXIS TRAVEL SPEED
• 2362 IPM

• Z-AXIS TRAVEL SPEED
• 2362 IPM

• MAX. RAW MATERIAL LENGTH
• 256"

• MIN. RAW MATERIAL LENGTH
• 98.4"

• MAX. OUTER CIRCLE DIAMETER
• 7.9"

• MIN. OUTER CIRCLE DIAMETER
• 0.6"

• MAX. LENGTH OF FINISHED PARTS
• 4.7"

• MAX. MATERIAL THICKNESS
• 0.3"

• MAX. BUNDLE CROSS-SECTION
• 23.6" x 23.6"

• MAX. TOOL WEIGHT (RAW MATERIAL)
• 330 lbs.

• MAX. TOOL WEIGHT (FINISHED PART):
• 55 lbs.

• SMALLEST PROGRAMMABLE INCREMENT
• .0004"

• FOCAL LENGTH OF CUTTING HEAD W/ LENS
• 6.1"

• MAX. LASER WATTAGE (PROGRAMMABLE IN 1% INCREMENTS)
• 3600W

• MAX. MILD STEEL THICKNESS
• 0.31"

• MAX. STAINLESS STEEL THICKNESS
• 0.24"

• MAX. ALUMINUM THICKNESS
• 0.2"

• POSITIONING ACCURACY
• 008"

• AVERAGE POSITION RANGE PS
• 008"

machine equipped with

• TRUMPF TRUFLOW 3600 RESONATOR
• CHILLER
• DUST COLLECTOR
