Trumpf Trumatic 6000L 2004

machine specification

• MAX TONNAGE
• 25.00

• WORKING RANGE COMBINED PUNCH/LASER
• 101.7” X 64.9"

• WORKING RANGE FOR LASER PROCESSING
• 121.4” X 64.9”

• POWER OUTPUT OF LASER
• 2700 Watt

• MAXIMUM SHEET THICKNESS
• 315"

• MAXIMUM TOOL SIZE
• 3.000” Dia.

• MAXIMUM WORKPIECE WEIGHT
• 506 Lb.

• MAXIMUM MACHINE SPEED
• 4258 Ipm

• MAXIMUM NUMBER OF TOOL STATIONS
• 18 (With Three Clamps)

• FIXED CHUTE FOR REMOVAL OF PUNCHED PARTS/SCRAP
• 3.15” X 1.96”

• LASER ORIFICE FOR REMOVAL OFF PARTS/SCRAP
• 98"

• MAXIMUM SIZE PARTS FOR PROGRAMMABLE CHUTES
• 19.68” X 19.68"

machine equipped with

• TURRET/LASER COMBO
• SIEMENS SINUMERIK 840D CNC CONTROL
• 2700 WATT TLF2700TM RESONATOR
• 18 TOOL STATIONS WITH (3) WORK CLAMPS

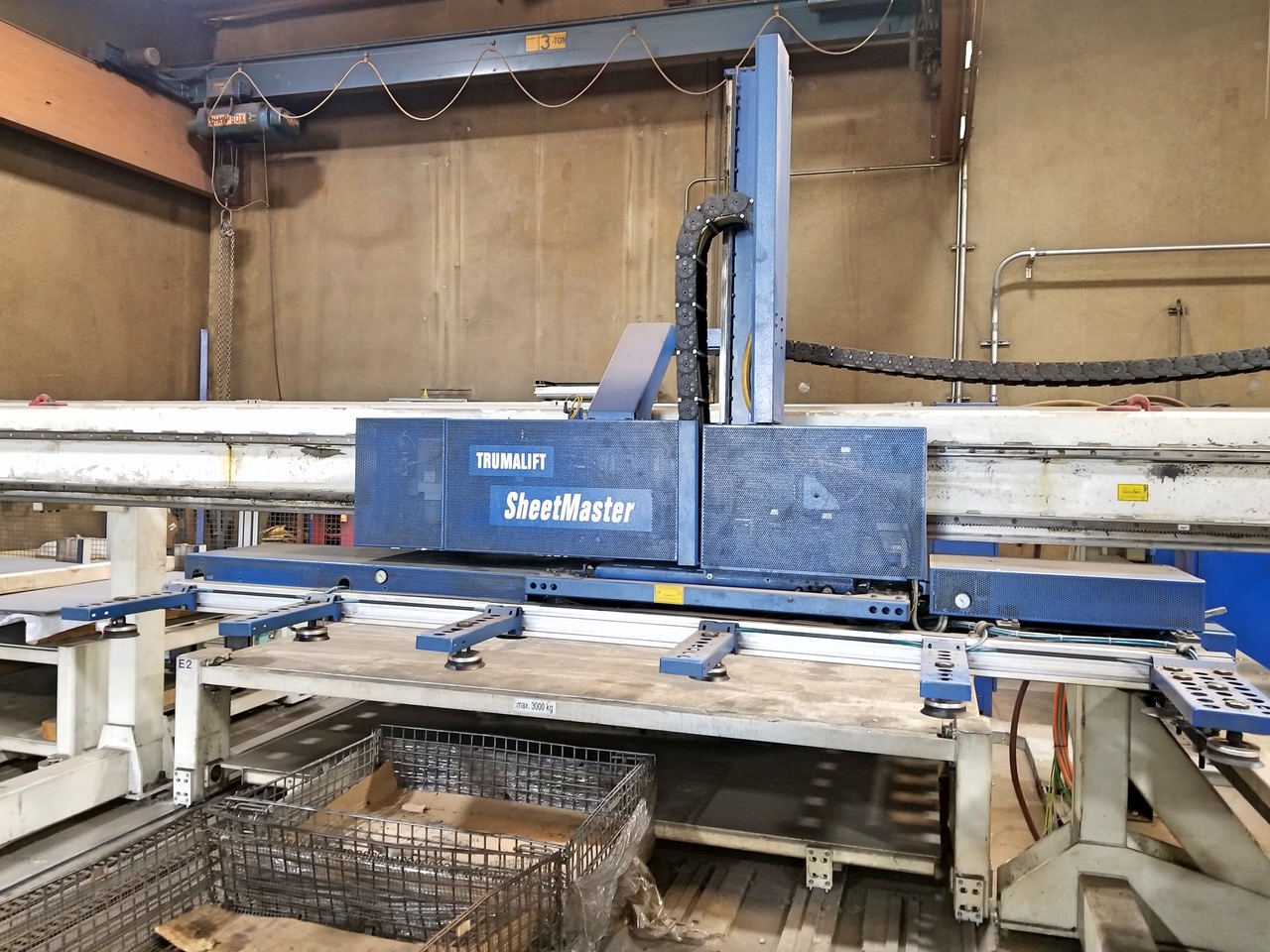

• TRUMALIFT SHEETMASTER WITH DUAL CARTS AND GRIPPER REMOVAL
• PROGRAMMABLE C-AXIS TOOL ROTATION (360 DEGREE)
• PROGRAMMABLE HYDRAULIC ROTARY RAM
• MULTI TOOL
• WARPED SHEET DETECTOR
• CHIP/SLUG BOX
• LOADED WITH TOOLING
