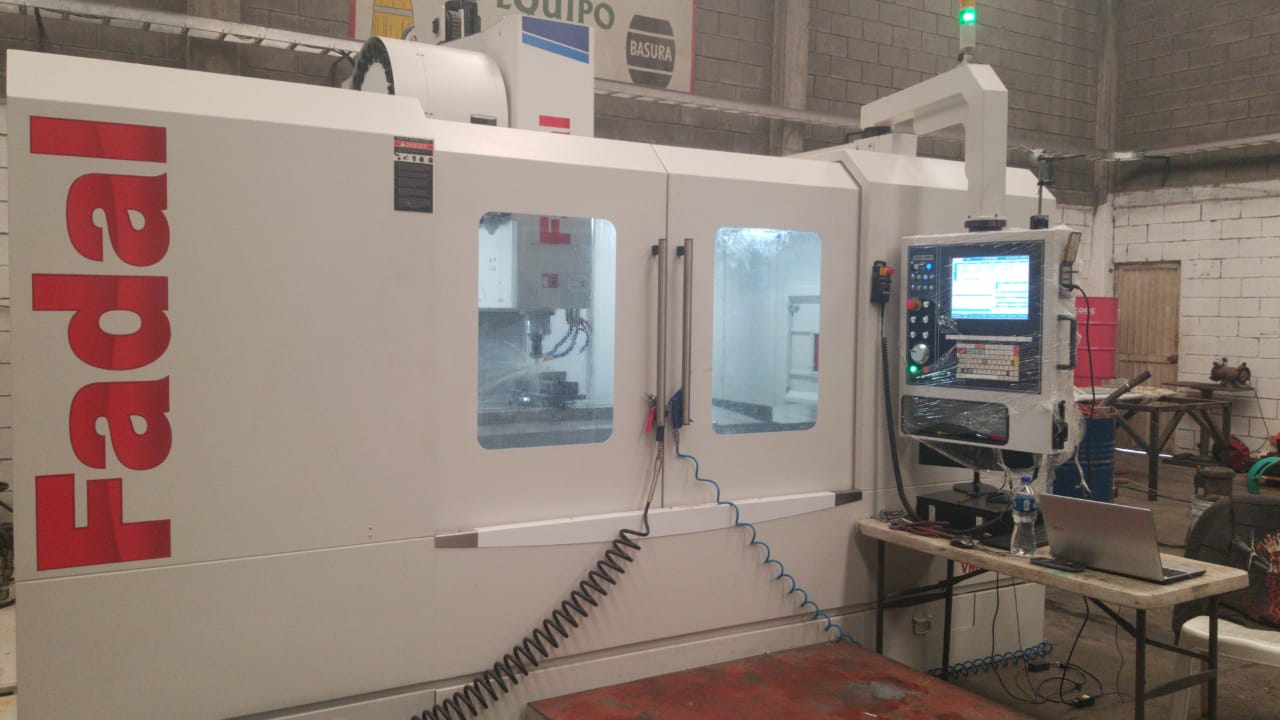

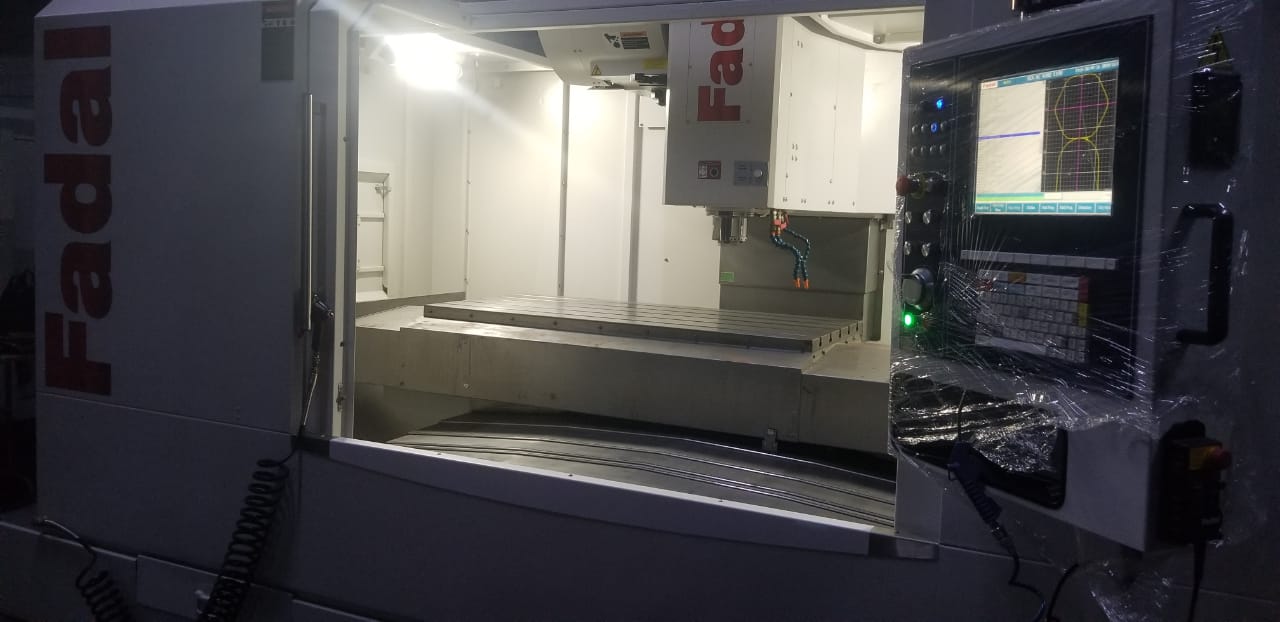

Fadal VMC-6030B-II 2019

Sold Image

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

  • MAKE: Fadal

  • MODEL: VMC-6030B-II

  • YEAR: 2019

  • TYPE: Vertical Machining Center

  • CONTROL: Fadal 64MP CNC Control

  • REF #: 3527008

MACHINE SPECIFICATIONS

  • Y - Axis Travel (inches):

    32"

  • Z - Axis Travel (inches):

    30"

  • Table Size - W:

    30"

  • Table Size - L:

    61"

  • Throat Depth:

    9.45"

  • X - Axis Travel (inches):

    60"

  • Spindle Center to Column:

    30.2"

  • T-Slot Dimensions:

    (5) 5.5" x .709" x 1.25"

  • Max Table Load:

    4,400 LBS

  • Spindle Type:

    CAT 40

  • Spindle Speed:

    10,000 RPM

  • Spindle Torque:

    225 ft. lbs.

  • Rapid Traverse Rate X/Y/Z:

    787 / 787 / 590 IPM

  • Ballscrew Diameter X,Y & Z Axis:

    50 mm

  • TOOL CAPACITY:

    24

  • Tool Changer Type:

    Dual Arm

  • Max Tool Weight:

    15 LBS

  • Max Tool Diameter (w/Adj. Tool):

    4.9" (3.1")

  • Max Tool Length:

    13.8"

MACHINE EQUIPPED WITH

  • Chip conveyor
  • Spindle Oil Cooler
  • 3 LED Work Lamps (2 Bar/1 Round)
  • Fully Enclosed
  • Spindle Air Blast
  • Automatic PDI Lubrication System
  • Operation Indication Lamp
  • Rigid Tapping
  • 3-Way Chip Augers
  • High Torque (22.5hp peak)
  • Remote MPG
